Revolt 1 - Gravel Bike (2026)
Pickup currently unavailable at The Outfitters - Mt. Pearl
Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Techs & Features
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
Flip Chip - Dropout
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide
Sizing to be used as a reference only and based on rider's height. Please check with us to determine the correct size.
- S: 159cm - 171cm
- M: 169cm - 181cm
- ML: 174cm - 186cm
- L: 179cm - 191cm
- XL: 189cm - 200cm
Specs
| Sizes | XS, S, M, M/L, L, XL |
|---|---|
| Colours | Alpine Green, Bali Bricks |
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm — XS: 42cm, S: 42cm, M: 44cm, M/L: 44cm, L: 46cm, XL: 46cm |
| Grips | Cork tape with gel |
| Stem | Giant Contact, 8-degree — XS: 50mm, S: 60mm, M: 70mm, M/L: 80mm, L: 80mm, XL: 90mm |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Grit |
| Shifters | Shimano CUES U6030, 2x10 |
| Front Derailleur | Shimano CUES U6030 |
| Rear Derailleur | Shimano CUES U6020 |
| Brakes | Shimano CUES U6030 hydraulic, Giant MPH rotors — Front: 160mm, Rear: 160mm |
| Brake Levers | Shimano CUES U6030 hydraulic |
| Cassette | Shimano CS-LG300, 11×39 |
| Chain | KMC X11 |
| Crankset | Shimano FC-U6030-2, 32/46 — XS: 170mm, S: 170mm, M: 172.5mm, M/L: 172.5mm, L: 175mm, XL: 175mm |
| Bottom Bracket | Shimano, threaded |
| Rims | Giant S-X2, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Stainless |
| Tires | Giant CrossCut AT 2, 700x38c, tubeless |
| Extras | Tubeless prepared, 53mm max tire size (long flip chip), 45mm max tire size (short flip chip) |
| Max Tire Clearance | 53mm |
| Weight | The most accurate way to determine the bike’s weight is to have your local dealer weigh it. Weight varies by size, finish, hardware, and accessories. |

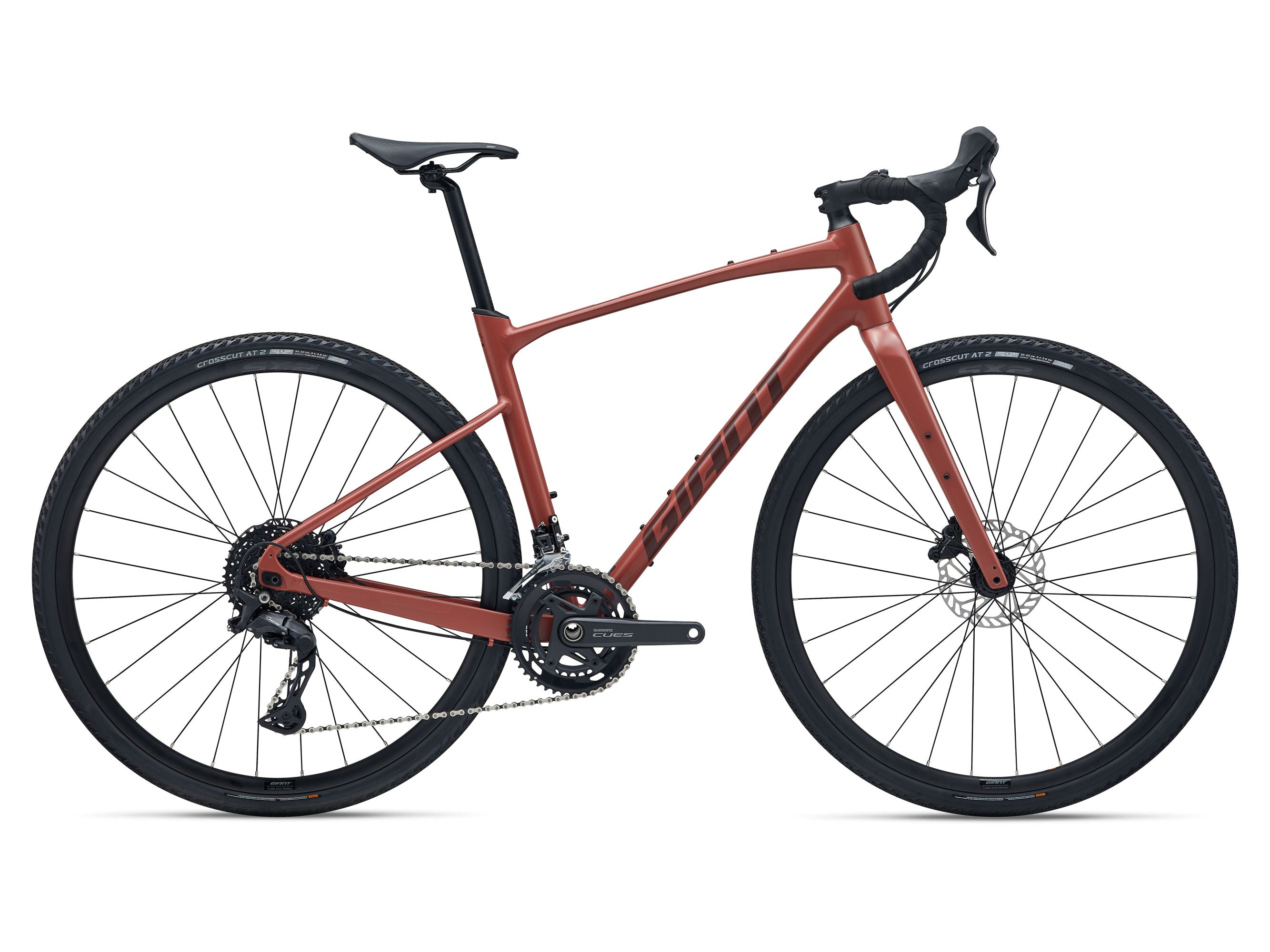

1080014225 - M Bali Bricks
