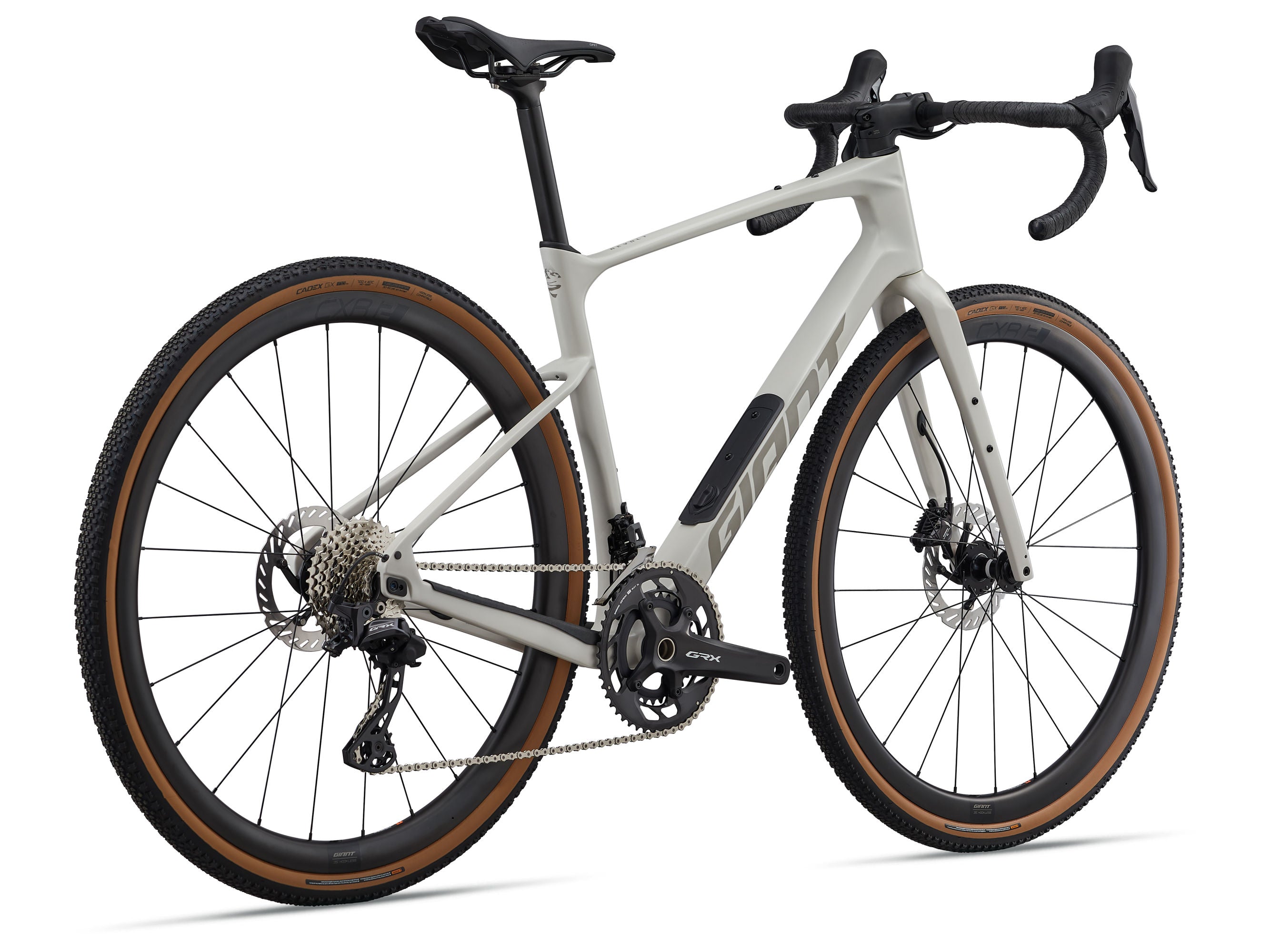

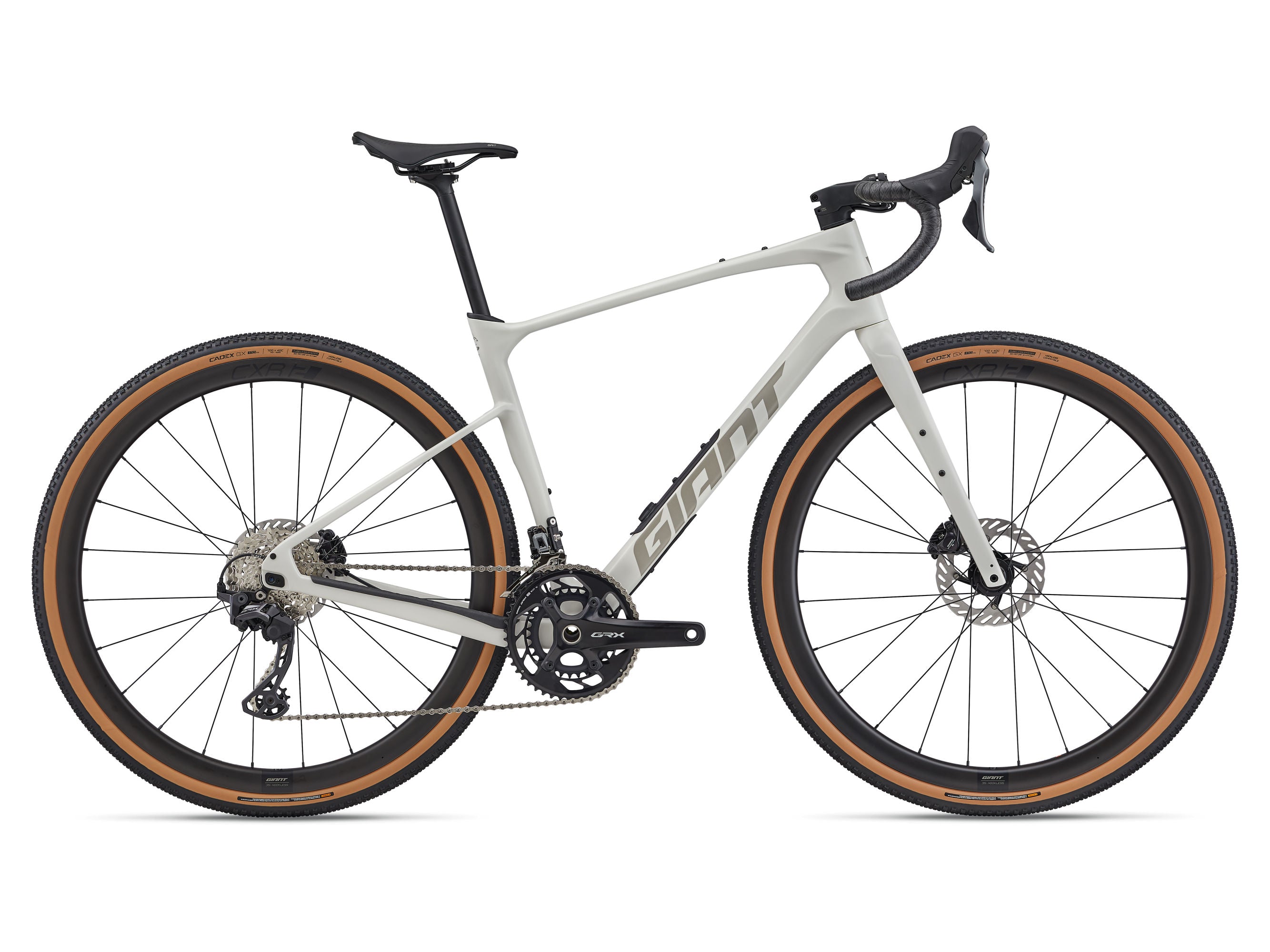

Revolt Advanced 0 (2026)
Pickup currently unavailable at The Outfitters - Mt. Pearl
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Key Performance Factors
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Tech & Features
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
OverDrive

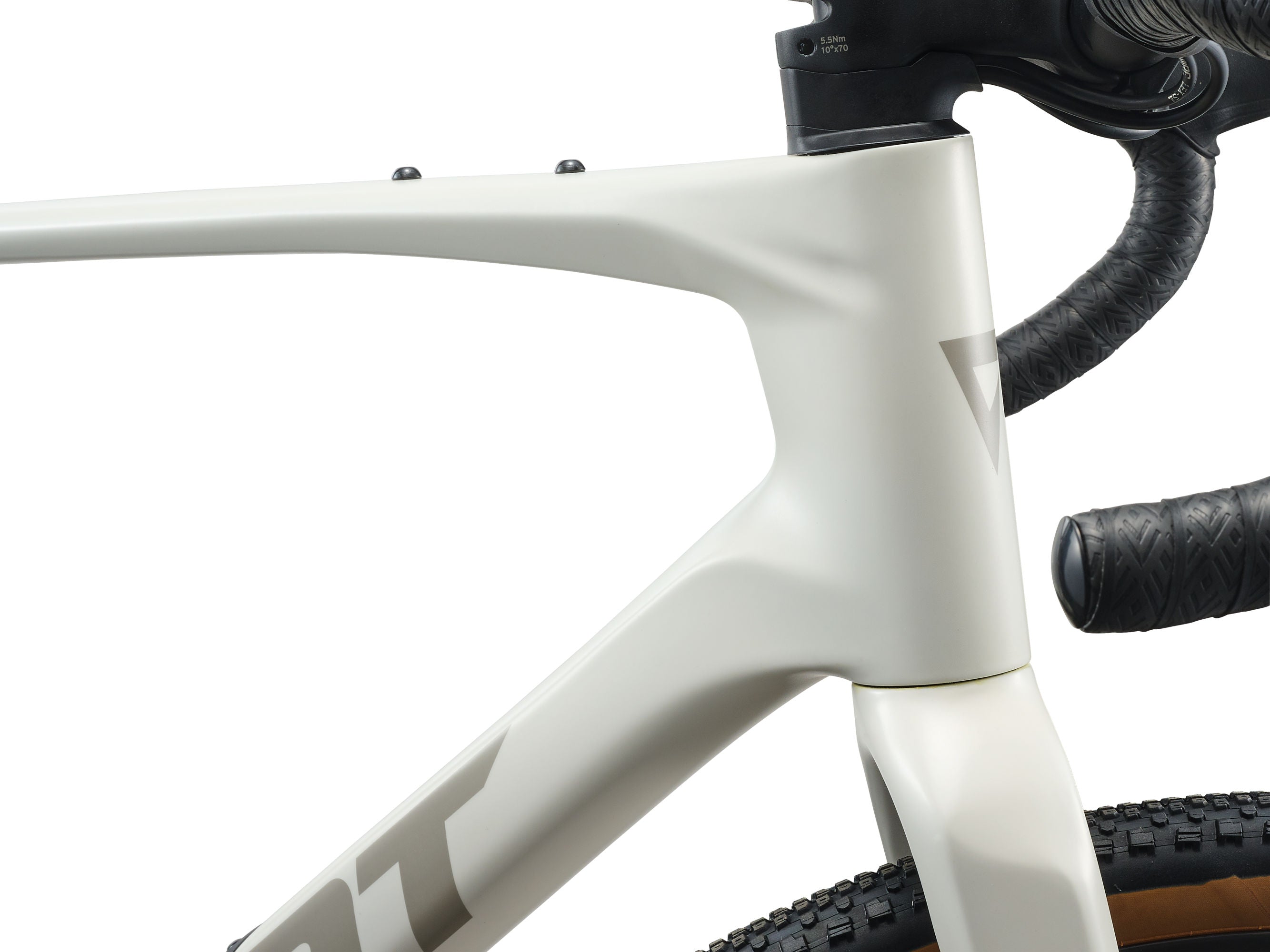

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide
Sizing to be used as a reference only and based on rider's height. Please check with us to determine the correct size.
- XS: 155cm - 166cm
- S: 159cm - 171cm
- M: 169cm - 181cm
- ML: 174cm - 186cm
- L: 179cm - 191cm
- XL: 189cm - 200cm
Specs
| Sizes | XS, S, M, M/L, L, XL |
| Colours | Snow Drift |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage |

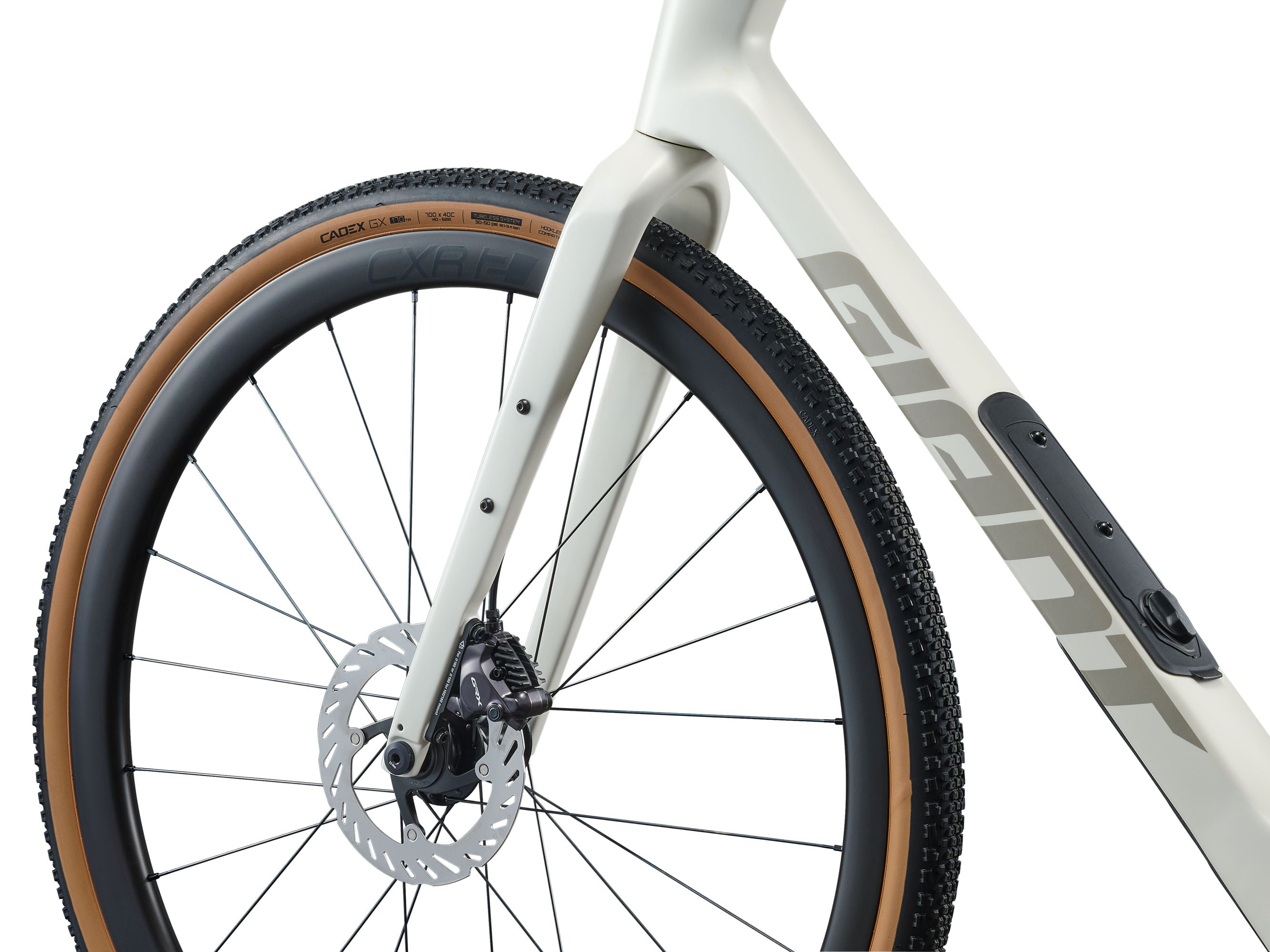

| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm — XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact AeroLight, -10°, XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |

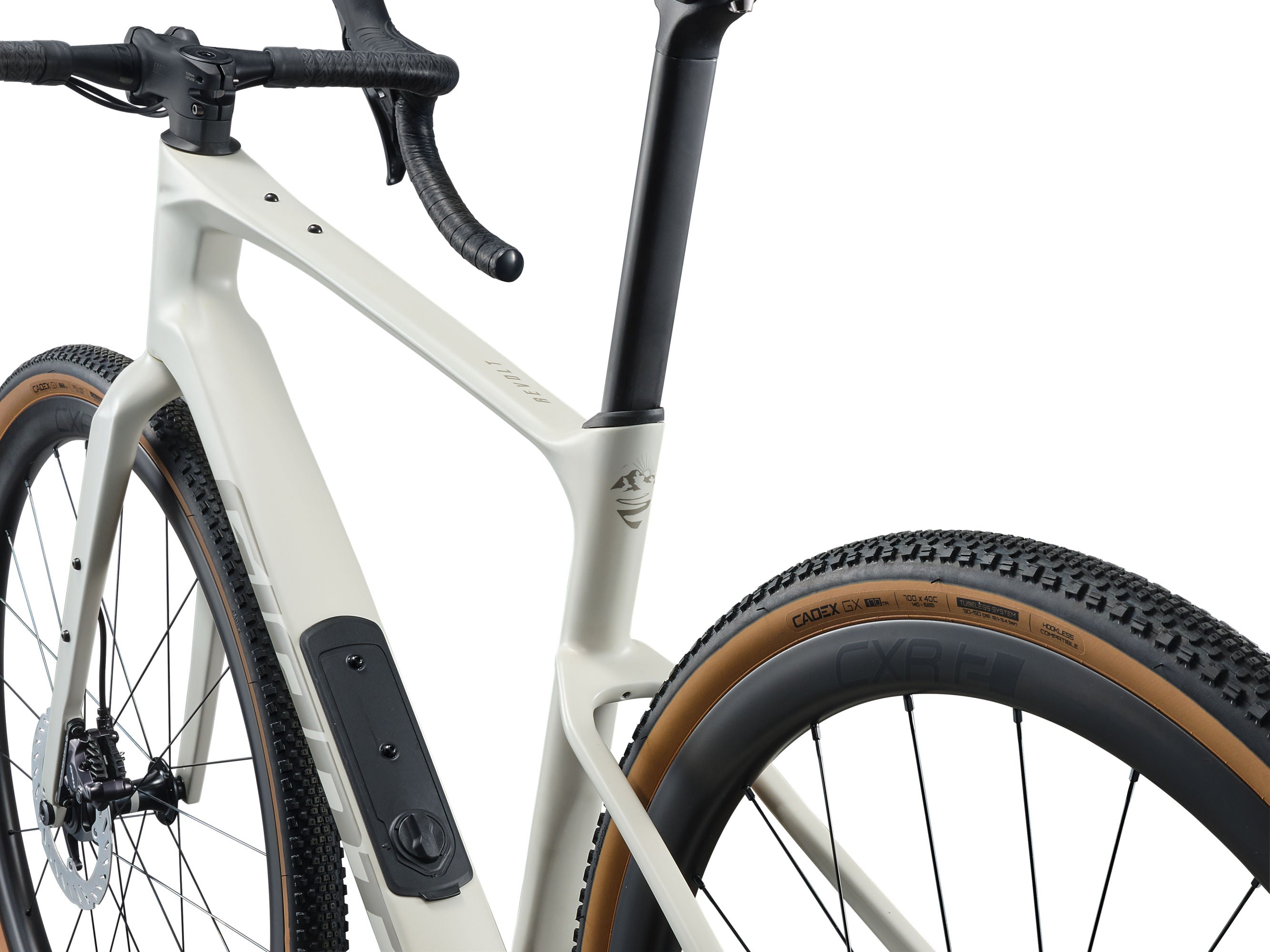

| Seatpost | Giant D-Fuse SL, composite, -5/+15mm offset |
| Saddle | Giant Grit |
| Pedals | No pedal [GA, Pan-EU], platform pedal [GU, GV, GJ] |
| Shifters | Shimano GRX RX-820, 2x12 |
| Front Derailleur | Shimano GRX RX-820 |
| Rear Derailleur | Shimano GRX RX-820 |
| Brakes | Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors — Front: 160mm, Rear: 160mm |
| Brake Levers | Shimano GRX RX-820 hydraulic |
| Cassette | Shimano CS-HG710, 12-speed, 11x36 |
| Chain | KMC X12L-1 |

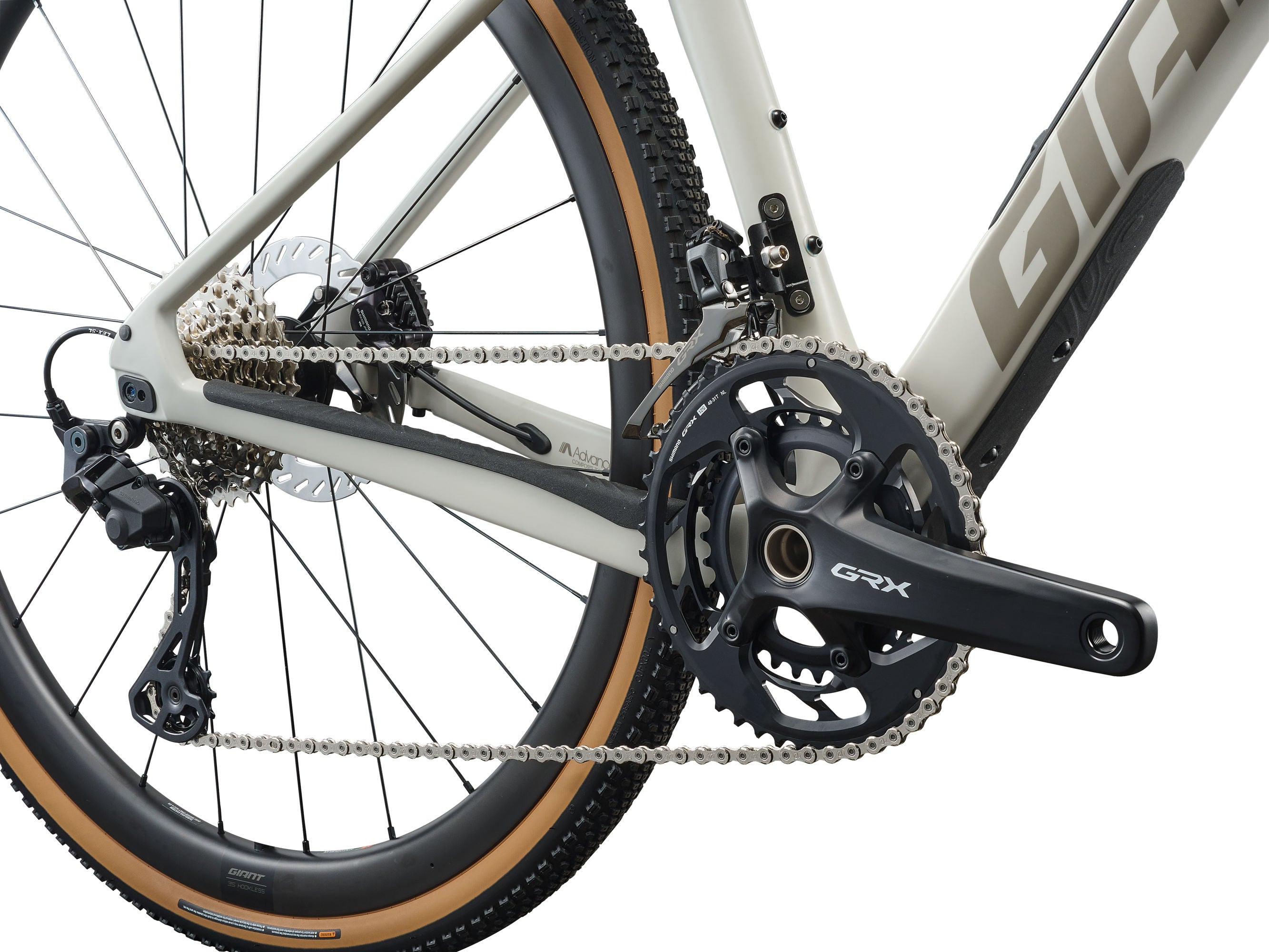

| Crankset | Shimano GRX RX-820, 31/48 — XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant CXR 2 WheelSystem — Front: 35mm, Rear: 35mm |
| Hubs | Front: Giant alloy, CenterLock, 12mm thru-axle; Rear: Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim Sprint |
| Tires | CADEX GX, 700x40c, tubeless |
| Extras | Tubeless prepared, 53mm max tire size (long flip chip), 45mm max tire size (short flip chip), in-frame storage bag |
| Max Tire Clearance | 53mm |
| Weight | The most accurate way to determine weight is to have your local dealer weigh the bike. Weight varies by size, finish, hardware, and accessories. All Giant bikes are designed for best-in-class weight and ride quality. |
