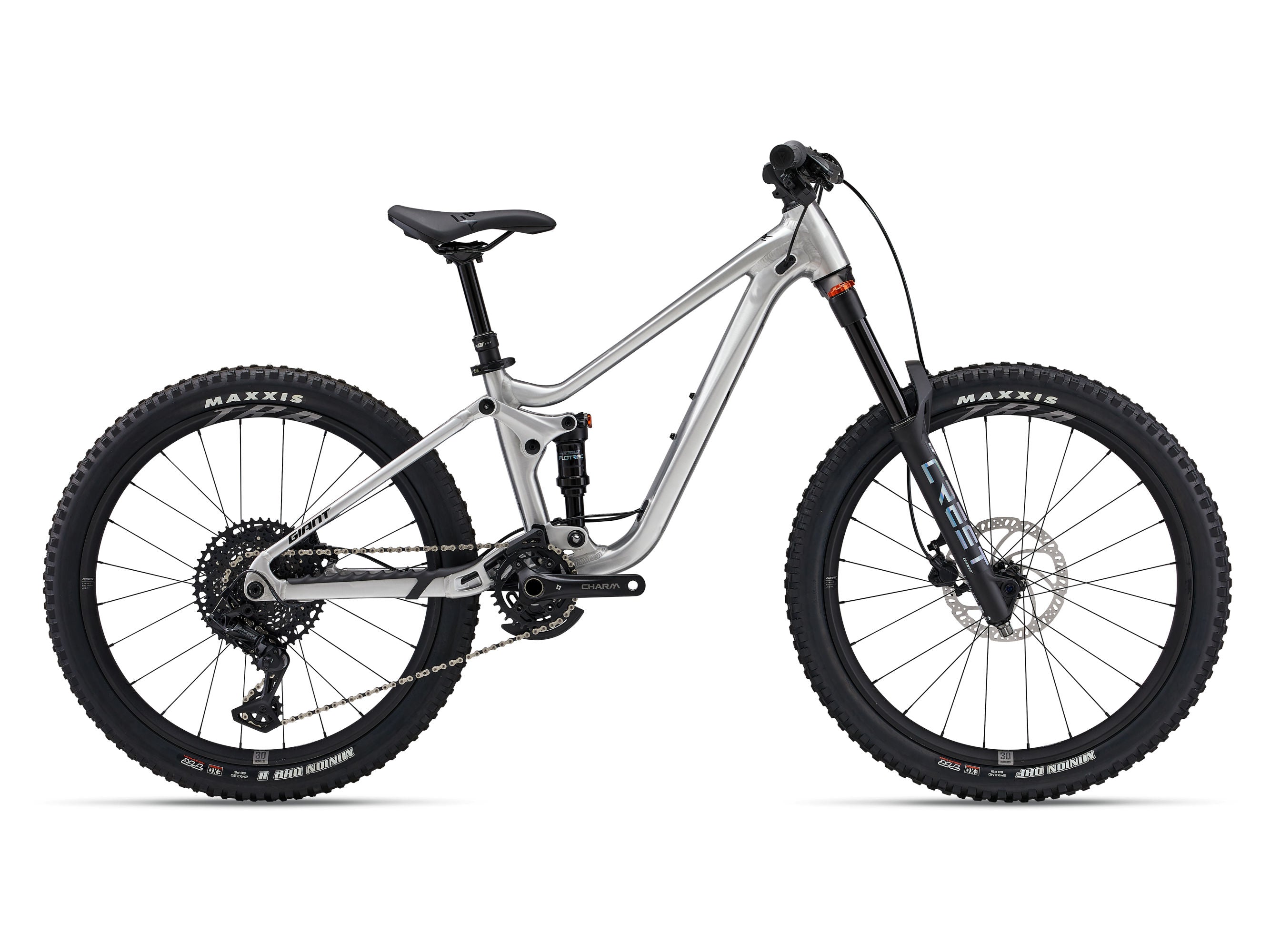

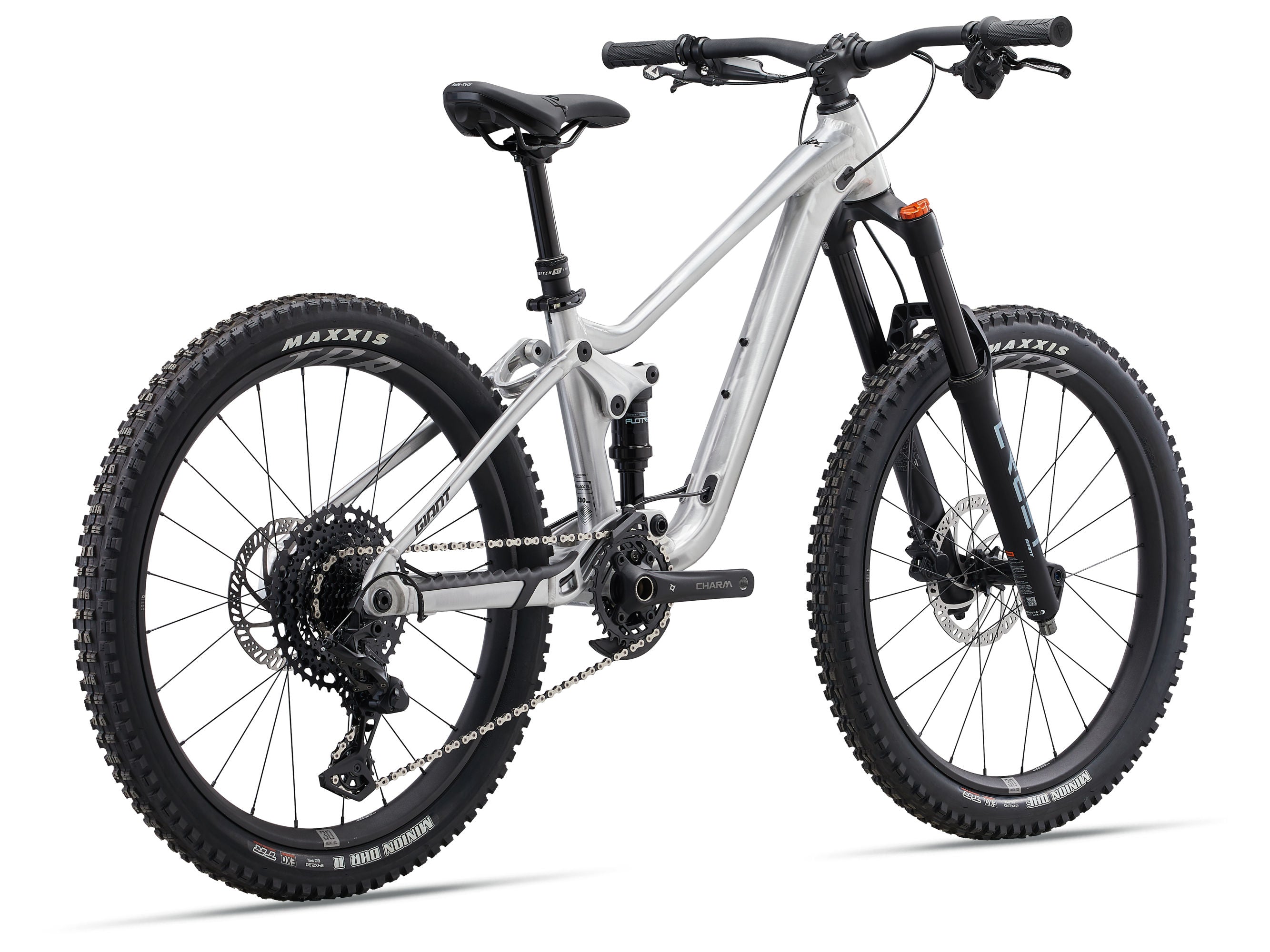

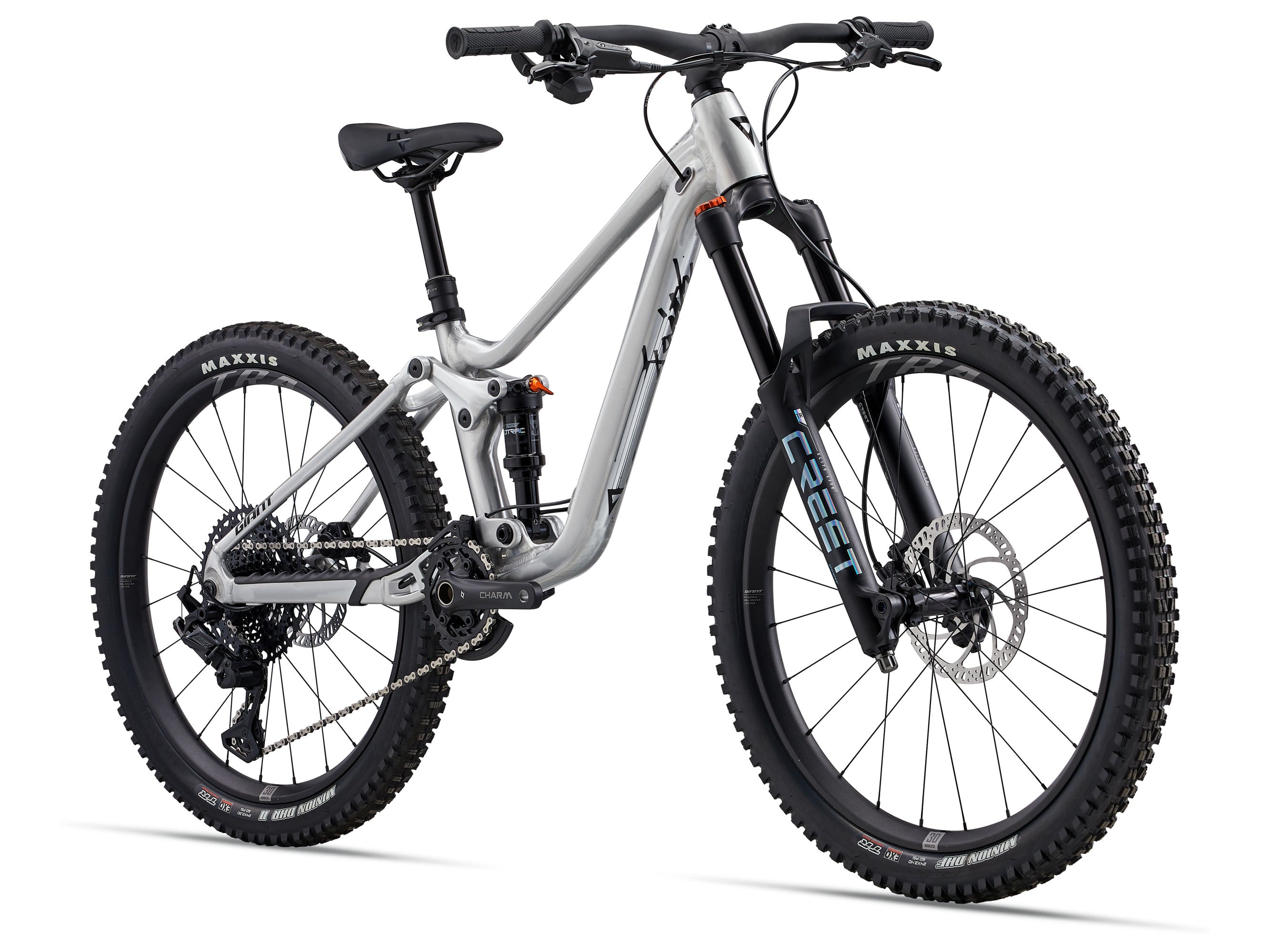

Small but mighty, this highly capable new trail bike is made for little rippers with big ambitions. With a lightweight alloy frame, 24-inch wheels, and youth-tuned suspension, it balances efficient climbing, loads of traction, and confident handling to help young riders take it to the next level.
Key Performance Factors
YOUTH-TUNED SUSPENSION

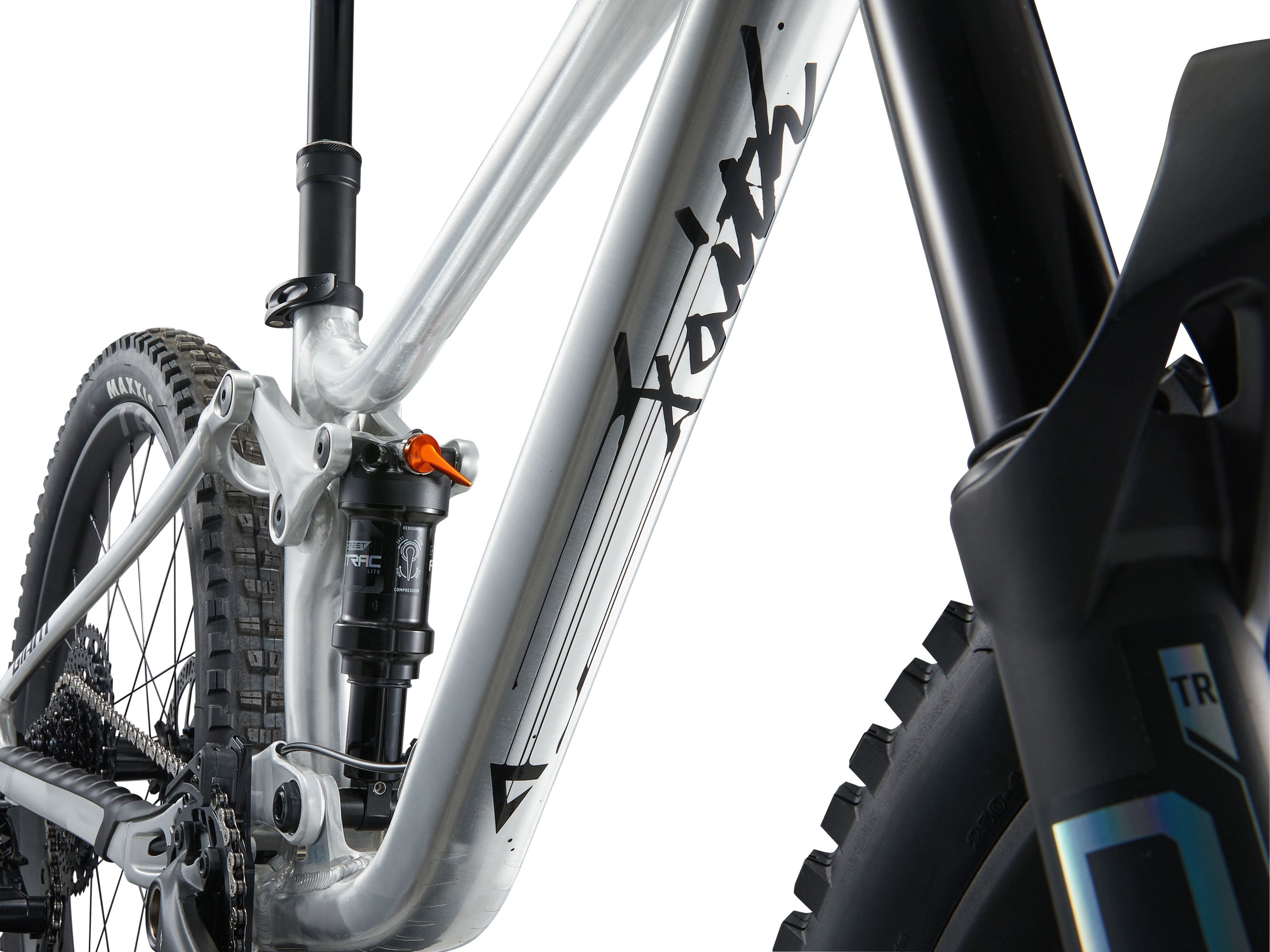

FlexPoint rear suspension with a Crest FloTrac Lite shock delivers 130mm of smooth travel tuned specifically for lighter weight riders. Up front, the 140mm Crest TR Elite fork handles rocks, roots and ruts. Front and rear suspension both have minimal activating force, giving young riders smooth control and confidence on technical trails.
AGILE AND EFFICIENT
An ALUXX SL aluminum frameset with youth-specific trail geometry is combined with quality lightweight components to minimize weight and help young riders tackle challenging terrain. A new 24-inch TRA WheelSystem borrows key technologies from the proven adult TRA WheelSystem for improved climbing capabilities and quicker acceleration.
OFF-ROAD CONTROL
Giant TRA WheelSystem features WideGuard technology, resulting in lighter, stronger rims so riders can run lower tire pressures for better traction without the risk of tire punctures or rim damage. The youth-specific 24-inch wheels help smaller riders maneuver and tackle technical trails, while a dropper seatpost makes it easy to optimize riding position while climbing or descending.
Techs & Features
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
FlexPoint Suspension Technology
A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide
Sizing to be used as a reference only and based on rider's height. Please check with us to determine the correct size.
- One Size: 130cm - 150cm
Specs
| Colours | Raw Aluminum |
| Frame | ALUXX SL-grade aluminum front and rear triangles, 130 mm Flexpoint suspension, rear 24" wheel only |

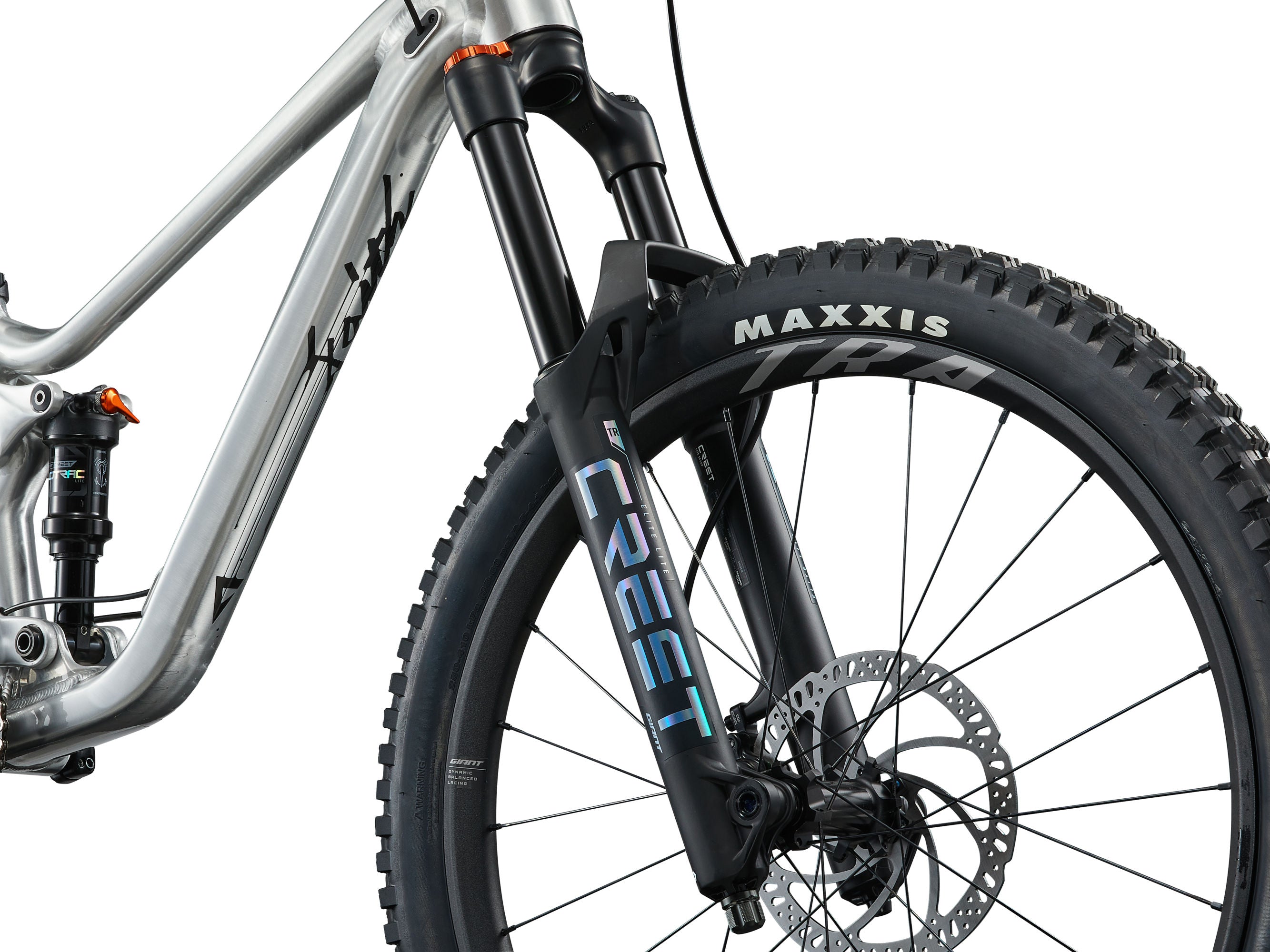

| Fork | Crest TR Elite Lite, 140 mm, FloTune damper, 24" specific |

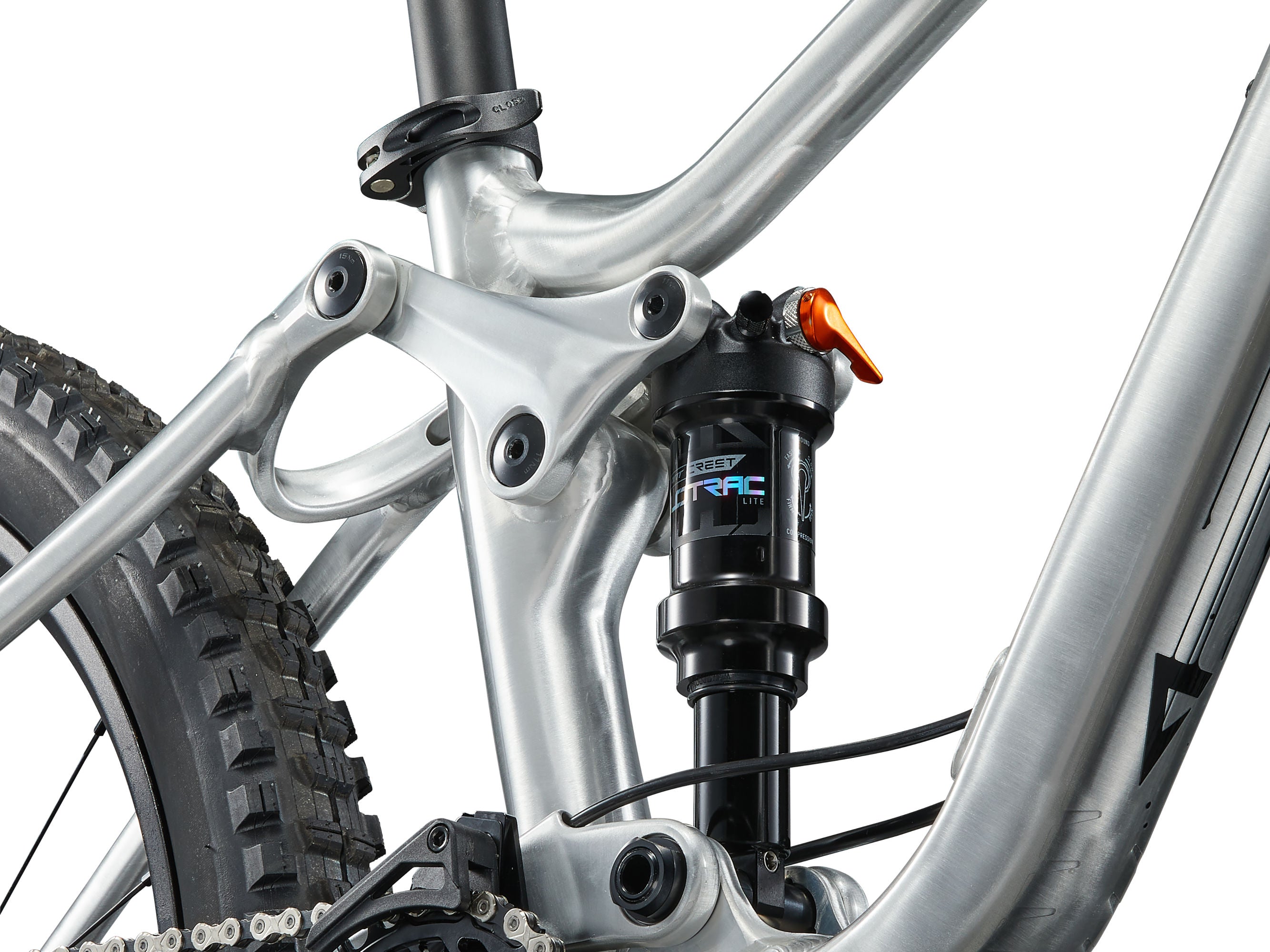

| Shock | Crest FloTrac Lite, 165x45, custom tuned for youth |

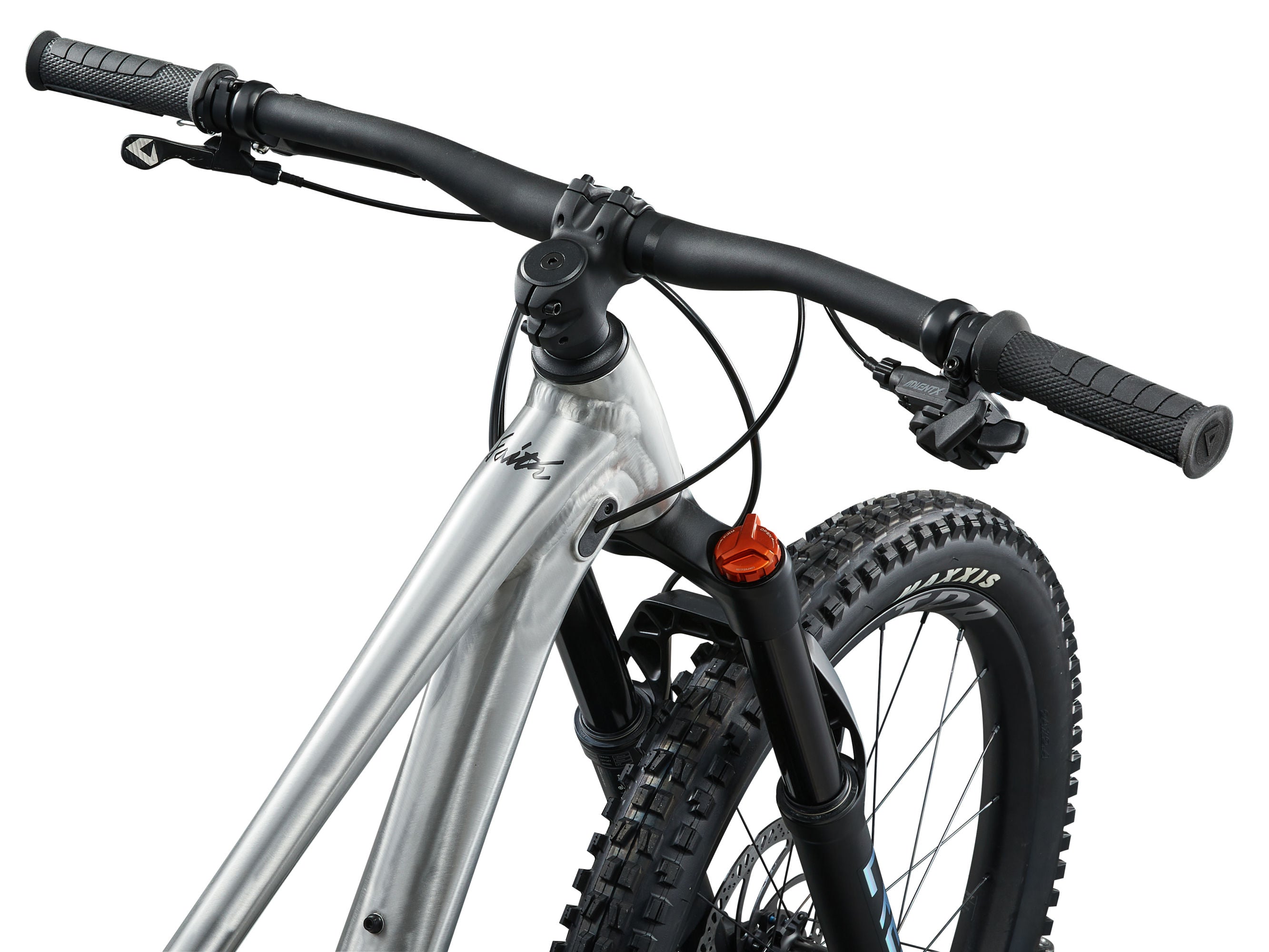

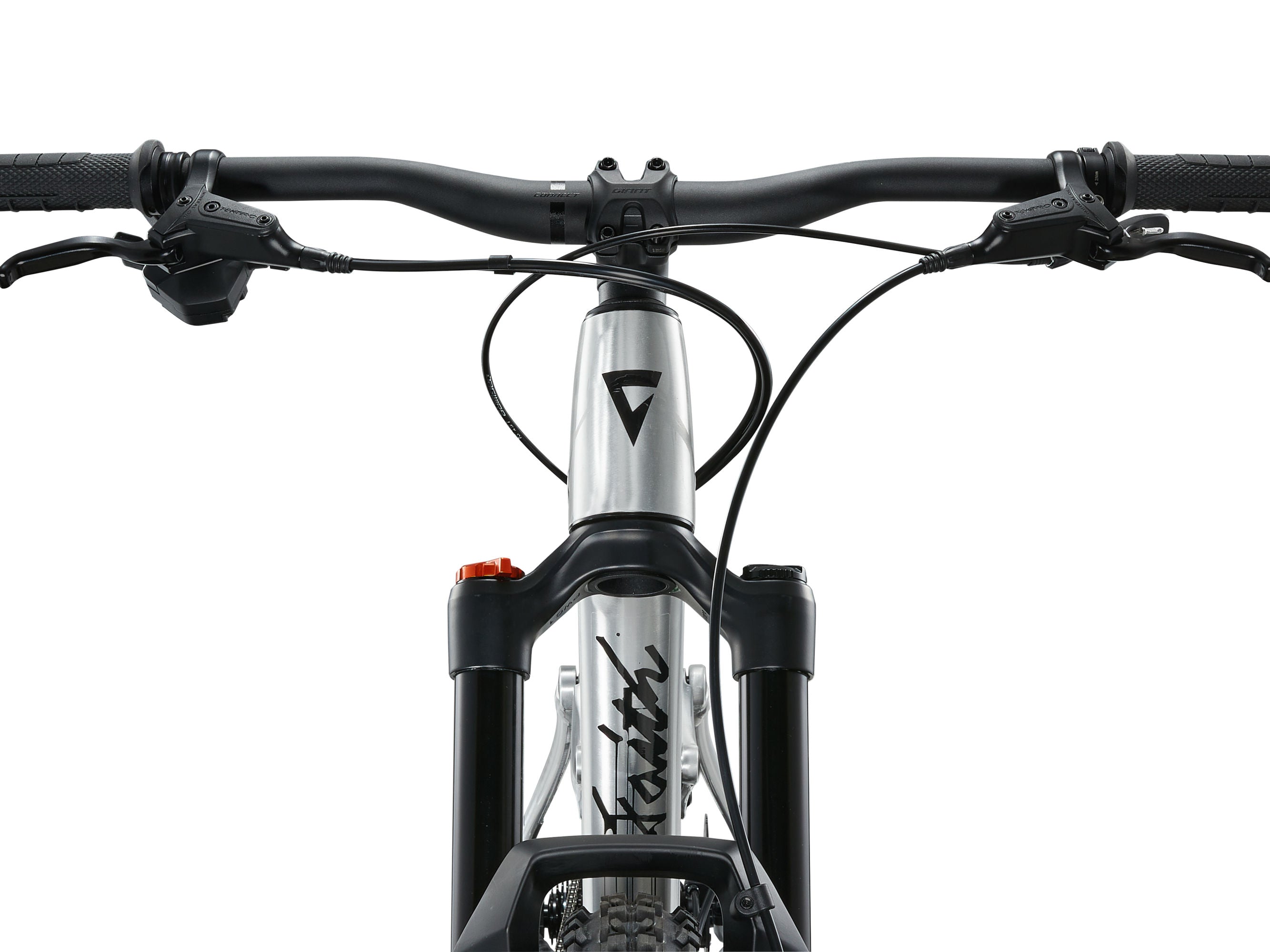

| Handlebar | Giant Connect TR, 680 x 31.8 mm, 20 mm rise, alloy |
| Grips | Giant Tactal Pro Lite youth lock-on |
| Stem | Giant Contact, 40 mm |

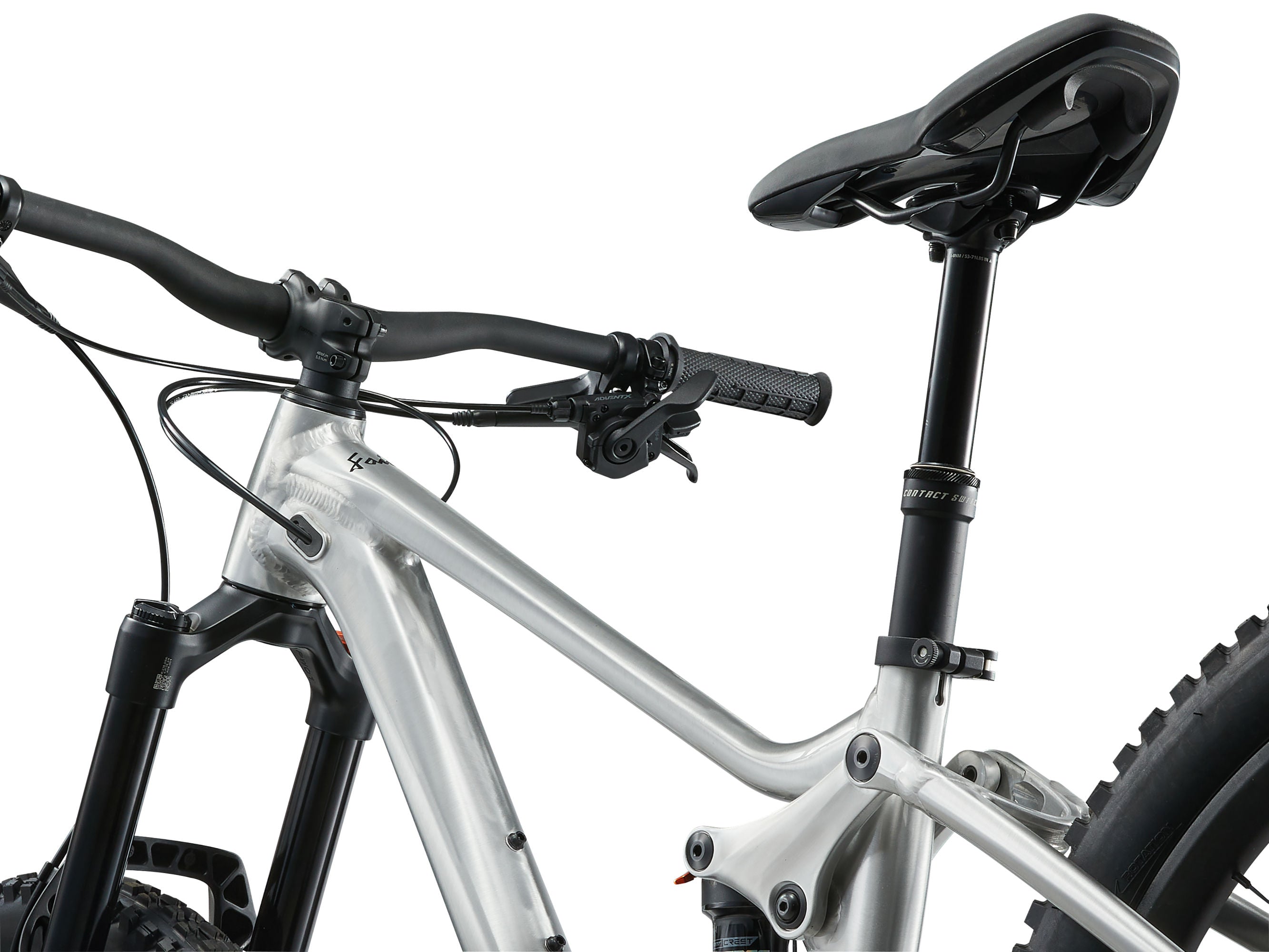

| Seatpost | Giant Contact Switch AT Lite, adjustable dropper, remote 70–100 mm travel / 30.9 x 315 mm |
| Saddle | Giant Jr. Sport |
| Pedals | Giant Pinner Comp Lite |
| Shifters | microSHIFT Advent X Trail M9505-R, 1x10 |
| Front Derailleur | N/A |

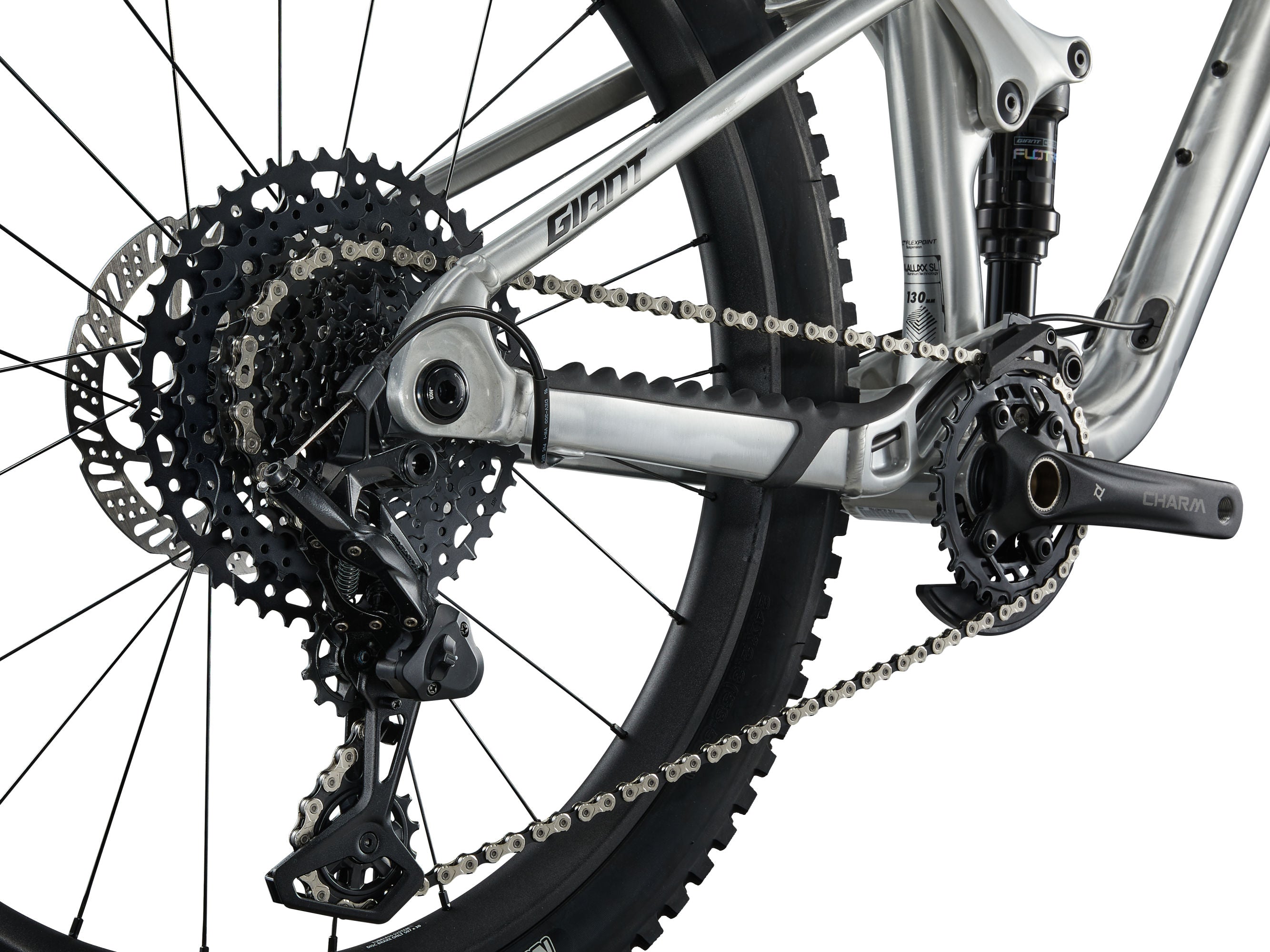

| Rear Derailleur | microSHIFT Advent X M6205AM |

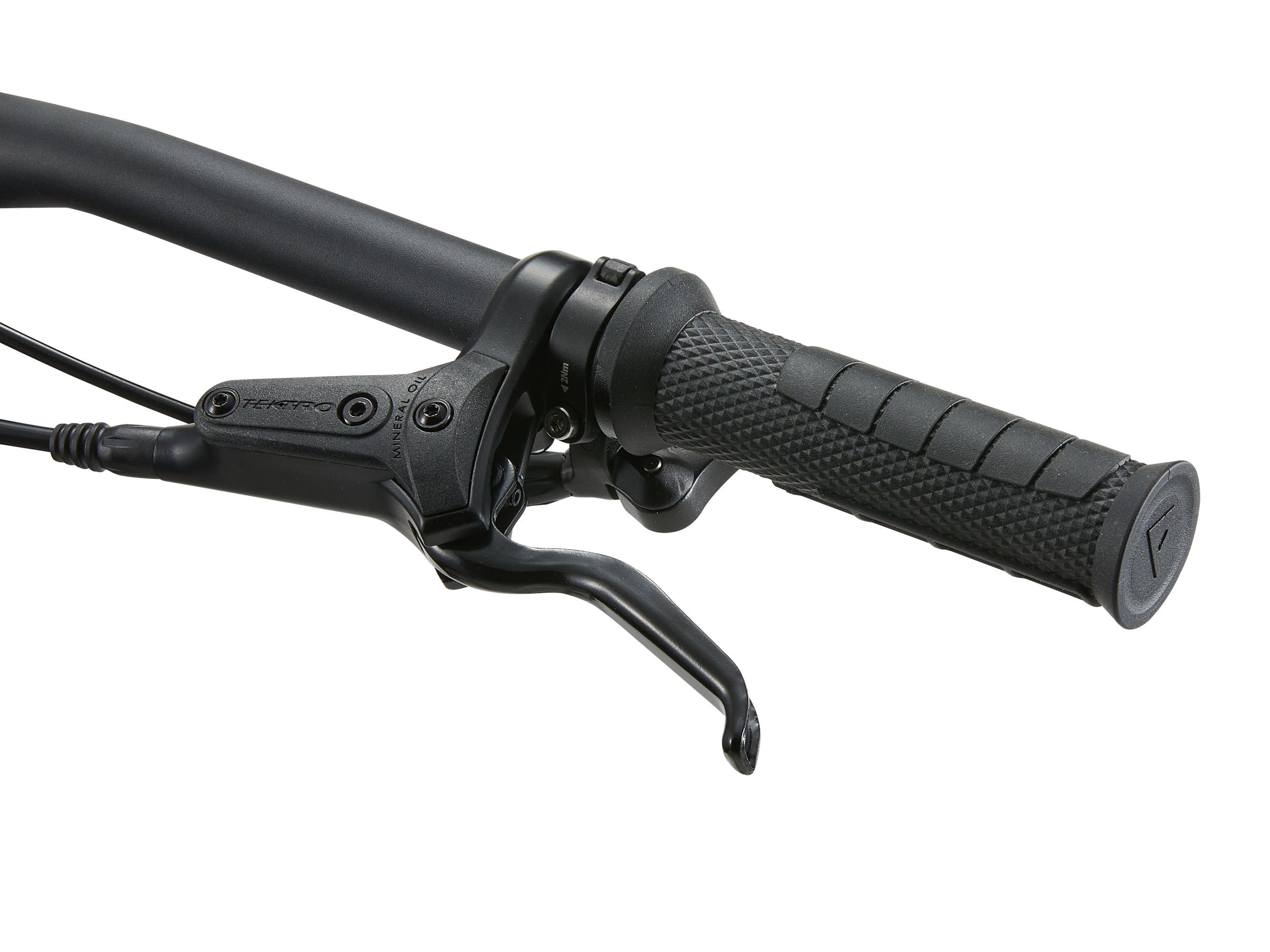

| Brakes | Tektro HD-J285, hydraulic, [F] 180 mm, [R] 160 mm |
| Brake Levers | Tektro HD-J285 |
| Cassette | microSHIFT Advent X G-Series, 11–48T |
| Chain | KMC X10 with Missing Link |
| Crankset | Prowheel Charm, 30t, 140 mm |
| Bottom Bracket | Prowheel, press-fit |
| Rims | Giant TRA WheelSystem, 6069 alloy, welded, 30 mm IW, 40 mm OW, 21 mm H, Wide Guard technology, [F&R] 24 |
| Hubs | [F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6-bolt, 72t POE, 6-pawl, sealed |
| Spokes | Sapim Laser straight pull, DBL technology |
| Tires | [F] Maxxis Minion DHF 24x2.4, EXO, TR, tubeless, 60 TPI, folding [R] Maxxis Minion DHR II 24x2.3, EXO, TR, tubeless, 60 TPI, folding |
| Extras | Giant 1x chain guide, ISCG05, 30–34T |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
1135001100 - OSFM Raw Aluminum
