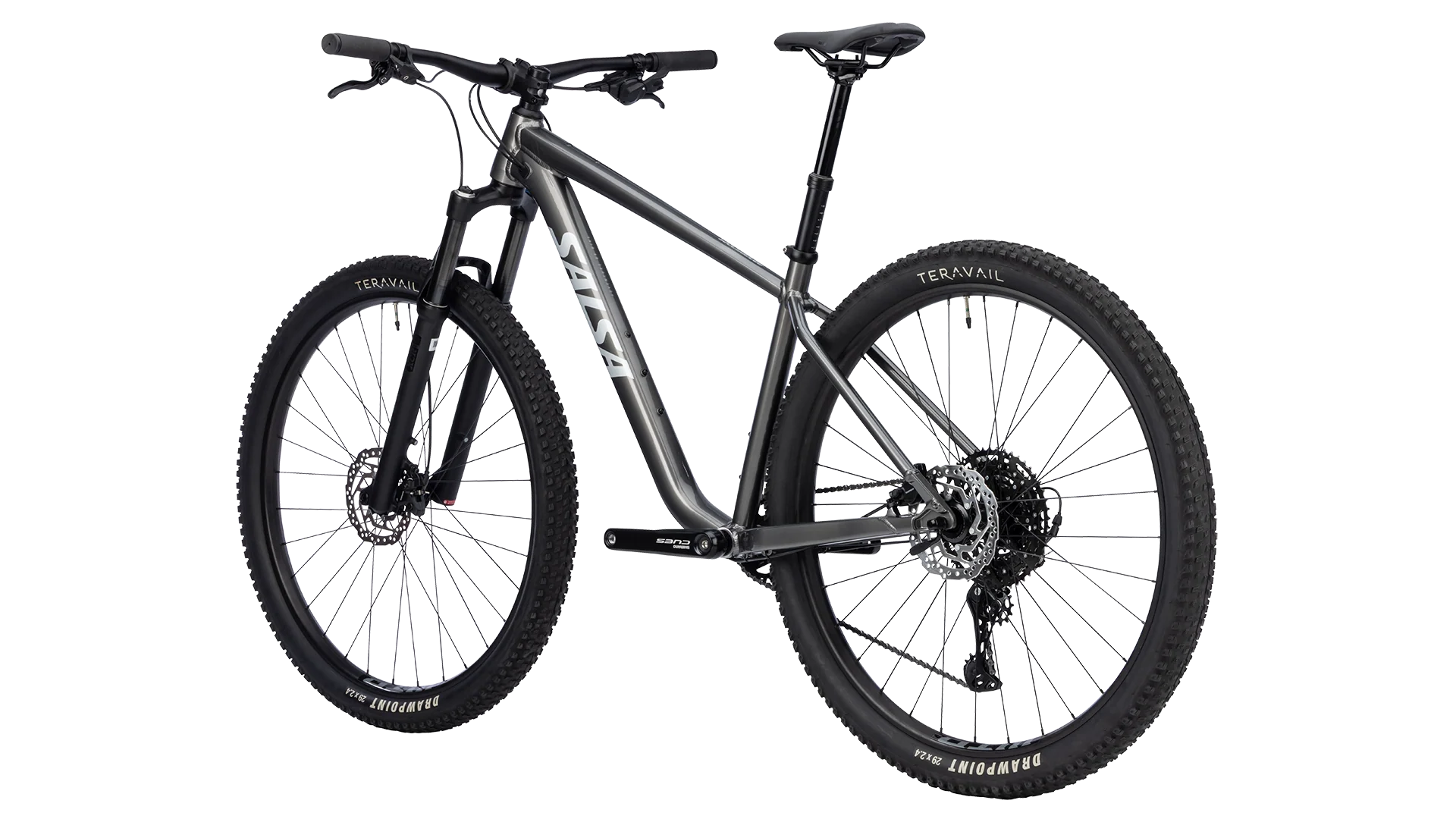

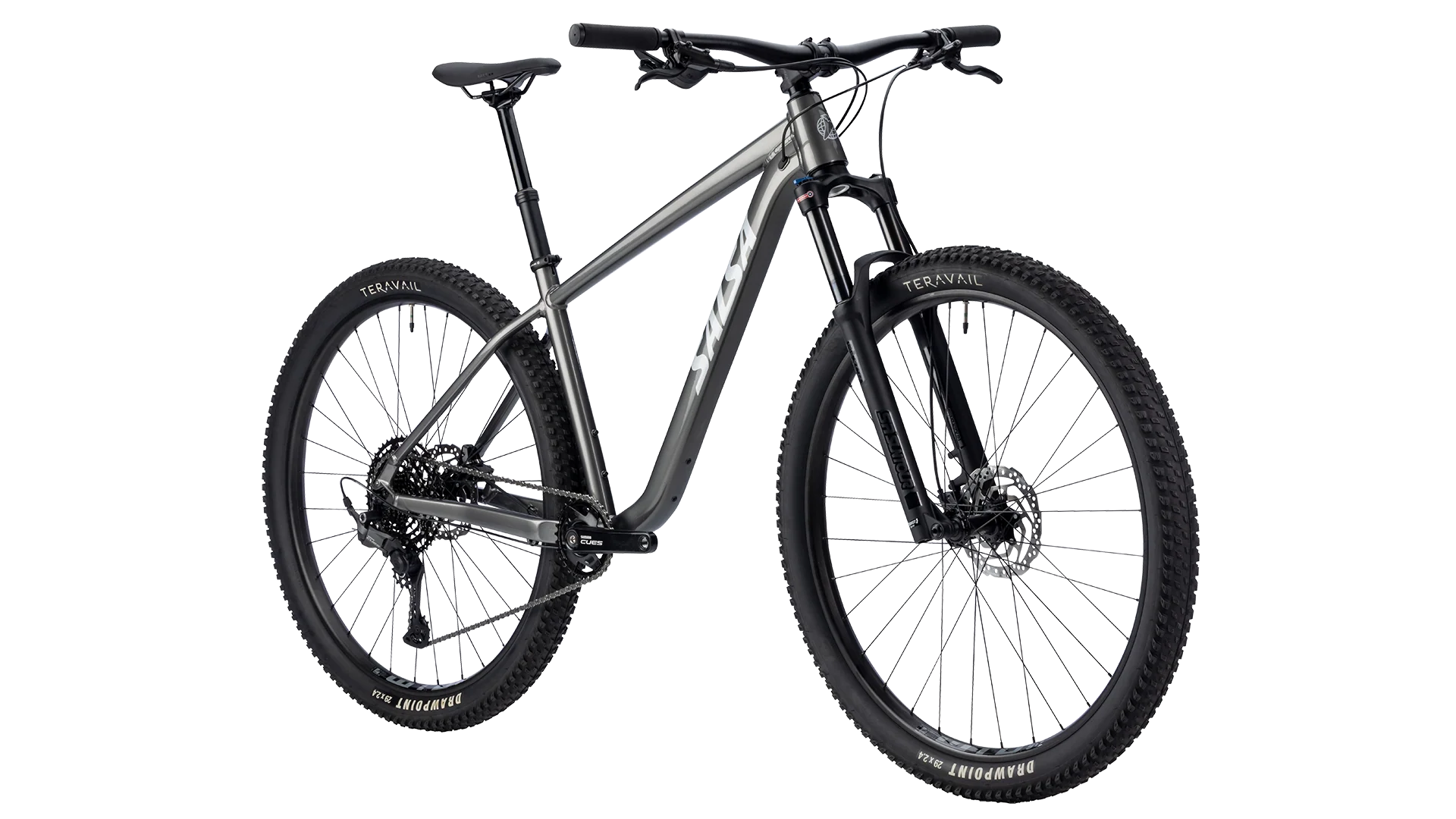

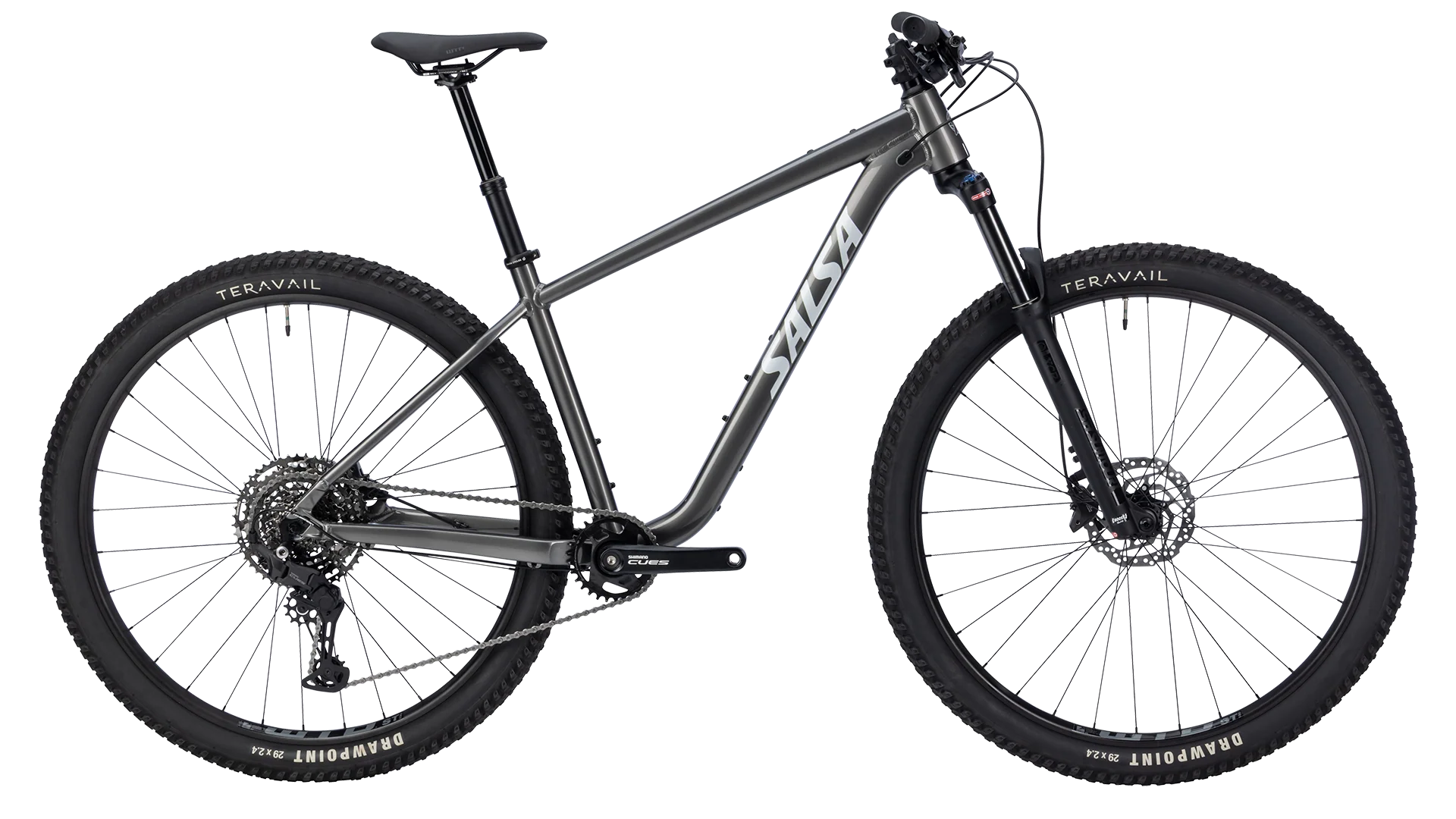

Rangefinder CUES 10 Bike - 29"
Rangefinder CUES 10 is our trail hardtail mountain bike designed be your trusty trail companion as you dig into the world of mountain biking.
Its aluminum frame features geometry that feels stable over many types of terrain. A 120 mm suspension fork and dropper post make it easier to navigate technical trail features. 29 x 2.4″ wheels and tires help you maintain momentum and traction over trail obstacles like rocks and roots.
Cargo mounts on the frame let you bring all the water, snacks, and tools you might need for a big day out on your new favorite trails. Reliable components are the finishing touch, with Shimano’s CUES 10 wide-range drivetrain for pedaling efficiency and hydraulic disc brakes for smooth stopping.
Key Features
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
Additional Features
6061-T6 Aluminum Tube Set
A blend of our proprietary, top-shelf 6061-T6 double- and triple-butted tubing creates a light, responsive, and durable frame with great trail feel
Rangefinder Trail Geometry
Rangefinder's long top tube, short stem, and 439 mm chainstays provide a stable ride to keep you in control on steep and technical terrain
120mm front suspension travel
A 120 mm fork soaks up the trail and a thru-axle keeps the front end stiff for precise handling
Dropper Post
Drop your saddle at the press of a button to tackle steep descents and technical terrain with the included TranzX dropper post. The Rangefinder frame also provides stealth dropper post cable routing for a clean look
Cargo Capacity
The Rangefinder frame has two bottle cages on the inside of the frame, an accessory mount on the underside of the down tube, and top tube mounts for use with our EXP-R Series Trillium Top Tube Bag
Full-length Cable Housing
Full-length housing improves shifting in poor conditions and increases the time between maintenance intervals
Dual Wheel Size Compatiblity
Rangefinder can fit both 29" (maximum of 29 x 2.6") and 27.5+ (27.5 x 2.8–3.0") wheels and tires
Details
Build Kit
| Frameset | |
| Frame | Rangefinder Aluminum |
| Color | Graphite Gray |
| Suspension Fork | SR Suntour XCR32, 120mm |
| Rear Shock | N/A |
| Components | |
| Headset | FSA Orbit B |
| Seatpost | TranzX YSI34, 100mm travel XS–SM; 125mm travel MD–XL |
| Stem | Salsa Guide 35.0 |
| Grips/Bar Tape | Salsa file tread |
| Saddle | WTB Solano, medium, steel hybrid fusion |
| Handlebar | TranzX alloy |
| Drivetrain | |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES U6000 |
| Cassette | Shimano CUES LG400, 11–48t, 10-speed |
| Chain | Shimano LG500 |
| Crankset | Shimano CUES U4000, 30t |
| Shifter | Shimano CUES U6000 |
| Brake Levers | Shimano MT401 |
| Brake Calipers | Shimano MT410 |
| Bottom Bracket | Shimano UN101 square taper |
| Rotors | Shimano RT10 (Center Lock, 160mm front and rear) |
| Wheels | |
| Front Tire | Teravail Drawpoint 29 x 2.4" |
| Rear Tire | Teravail Drawpoint 29 x 2.4" |
| Front Hub | Shimano TC500 15 x 110mm |
| Rear Hub | Shimano MT2000 10 x 141 mm |
| Spoke | 14 gauge, black |
| Rim | WTB ST i30, 32h, 29" |
| Weight | |
| Complete Bike | 31 lbs 10 ounces |
Frame Specs
| Design Wheel/Tire Sizes | 29 x 1.9–2.6" |
| Alternate Wheel/Tire Sizes | 27.5 x 2.8–3.0" |
| Suspension Fork Length (Travel) | 100–130 mm |
| Fork Offset | 46 mm |
| Rear Spacing | 141 x 10 mm QR |
| Rear Brake (Rotor) | 74 mm post mount (160–180 mm rotor) |
| Headset - Upper | ZS44 |
| Headset - Lower | ZS56 |
| Seatpost | 30.9 mm |
| Dropper Post Compatible | Yes (internal) |
| Seatpost Clamp | 35.0 mm |
| Front Derailleur Clamp | N/A |
| Front Derailleur Type | N/A |
| Derailleur Hanger | FS2361 |
| Bottom Bracket | 73 mm BSA, threaded |
| Crankset (Max Ring) | Boost 148 52 mm chainline only (32t max) |
| Accessory Mounts | Rear Rack Mounts: Yes. Salsa Post-Lock seatpost collar required; Downtube Accessory Mounts: 1; Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bag. |
| Bottle Mounts | 2 |
| Front Fender Mounts | No |
| Rear Fender Mounts | No |
BK01733 - Graphite Gray
