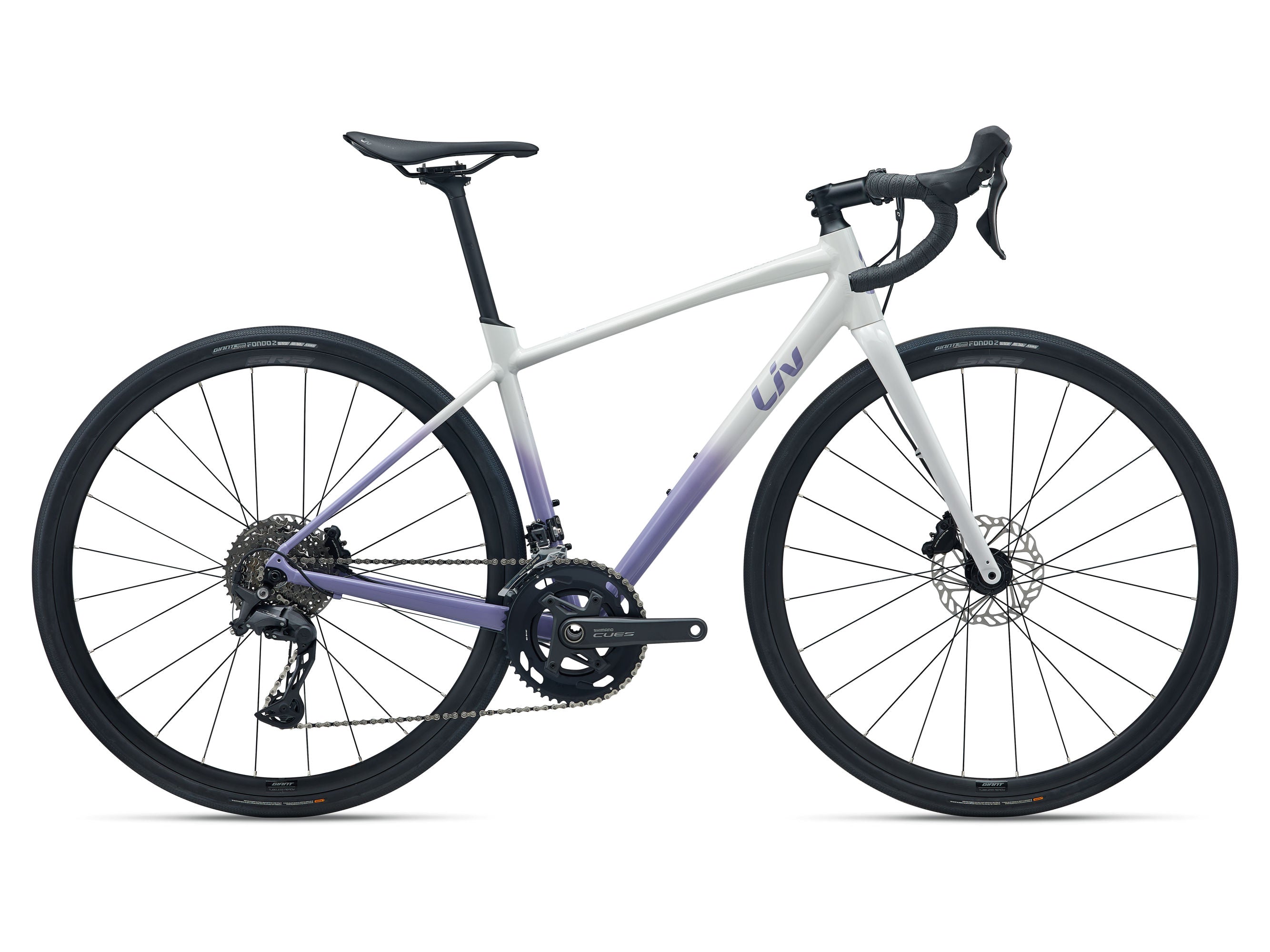

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Key Performance Factors
Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
Tech & Features
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
Compact Road Design
When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
D-Fuse Seatpost
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Sizing Guide
Sizing to be used as a reference only and based on rider's height. Please check with us to determine the correct size.
- XXS: 145cm - 156cm
- XS: 153cm - 162cm
- S: 158cm - 169cm
- M: 165cm - 174cm
- L: 171cm - 182cm
Specs
| Sizes | XXS, XS, S, M, L |
| Colours | Lavender Blush |
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar |
Liv Connect, 31.8mm XXS: 380mm XS: 380mm S: 400mm M: 400mm L: 420mm |
| Grips | Liv All Condition |
| Stem |
Giant Sport XXS: 70mm XS: 70mm S: 80mm M: 90mm L: 90mm |
| Seatpost |
Giant D-Fuse, composite XXS: 350mm XS: 350mm S: 350mm M: 350mm L: 350mm |
| Saddle | Liv Approach |
| Shifters | Shimano CUES U6030 |
| Front Derailleur | Shimano CUES U6030F |
| Rear Derailleur | Shimano CUES U6020-10 |
| Brakes | Shimano BR-U6030 hydraulic, Giant MPH rotors, [F] 160mm, [R] 160mm |
| Brake Levers | Shimano CUES U6030 |
| Cassette | Shimano CS-LG400, 10-speed, 11x39 |
| Chain | KMC X11 |
| Crankset |
Shimano FC-U6030-2, 34/50 XXS: 165mm XS: 165mm S: 170mm M: 170mm L: 172.5mm |
| Bottom Bracket | Shimano BB-RS501 |
| Rims | Giant S-R2 Disc |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Stainless |
| Tires | Giant Gavia Fondo 2, 700x32c, tubeless |
| Extras | tubeless prepared, 38mm max tire size |
| Max Tire Clearance | 38mm |
1017035 Lavender Blush
