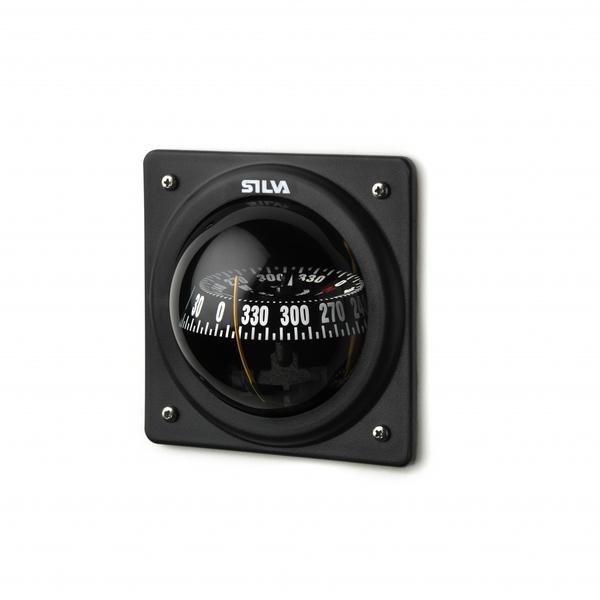

70P is a bulkhead mount compass designed for yachtsmen that demand absolute accuracy and a steady card in all conditions.
The compass handles unlimited slope of the keel line and a 30º heeling angle. The curved lubber line enables swift and clear reading at a glance without parallax errors. With a main steering scale on the horizontal part and direct reading on the vertical edge,
70P is ideal for boats with a sitting as well as a standing helmsman. It can be mounted at most angles and its compact size (70 mm) makes it suitable for smaller boats.
Specifications:
| Accuracy | +/- 17.8 mils / 1° |
| Apparent card diameter | 70 mm |
| Built-in compensator | Optional |
| Card type | Cone |
| Compatibility | Kayaks, powerboats, sailboats |
| Heeling Angle | Roll: 30° Pitch: 30° |
| Illumination | Optional |
| Lubber lines | Centre |
| Materials | Acrylic, PC/ABS |
| Mounting | Bulkhead |
| Mounting angle | +10° to +100° |
| Sapphire jewel bearing for friction-free movement of the compass needle | Yes |
| Size | 95 x 72 mm |
| Temperature operating range | -10 to +70 °C |
| Variant | Magnetic North |
| Water resistant | Yes |
| Weight | 344 g |
