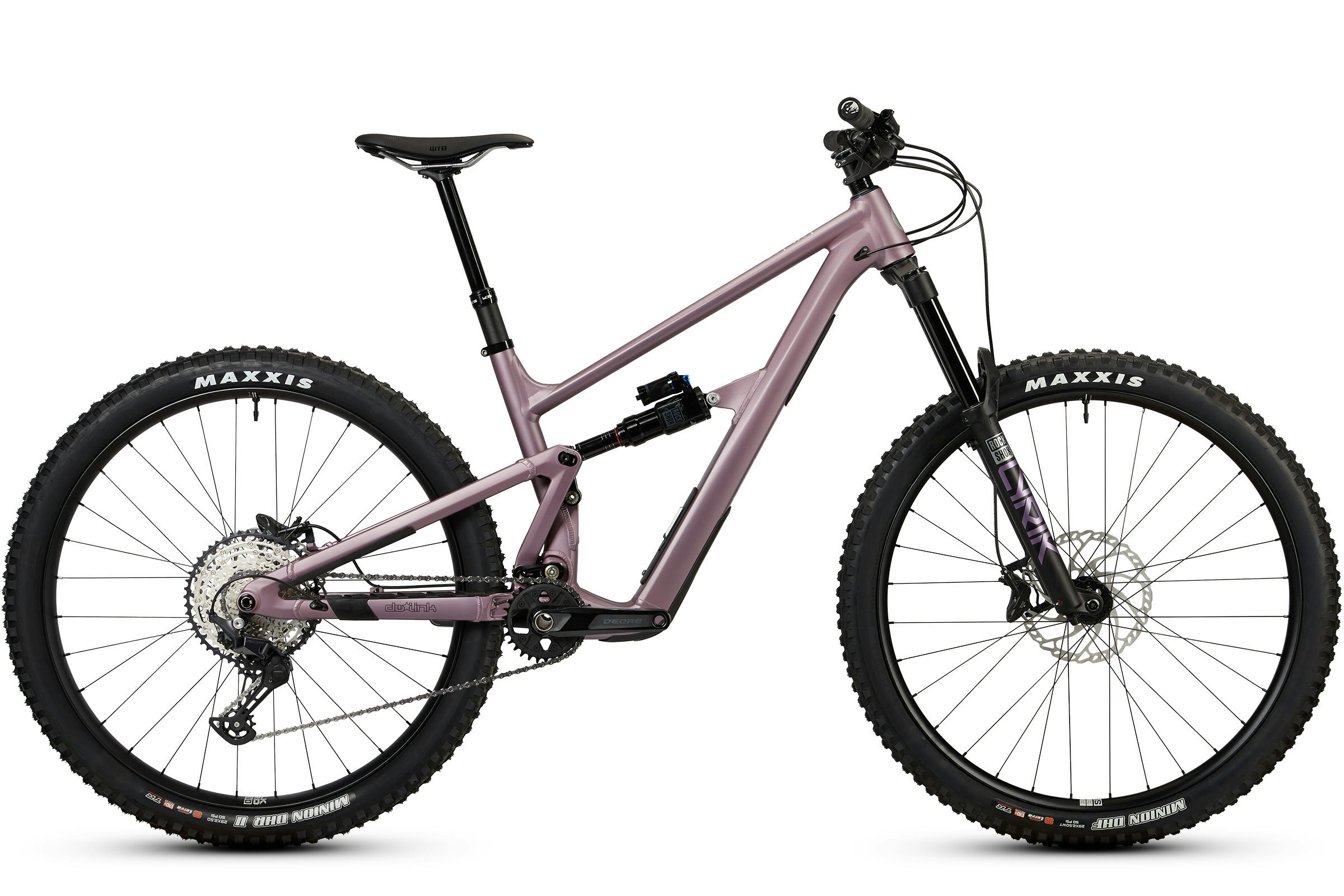

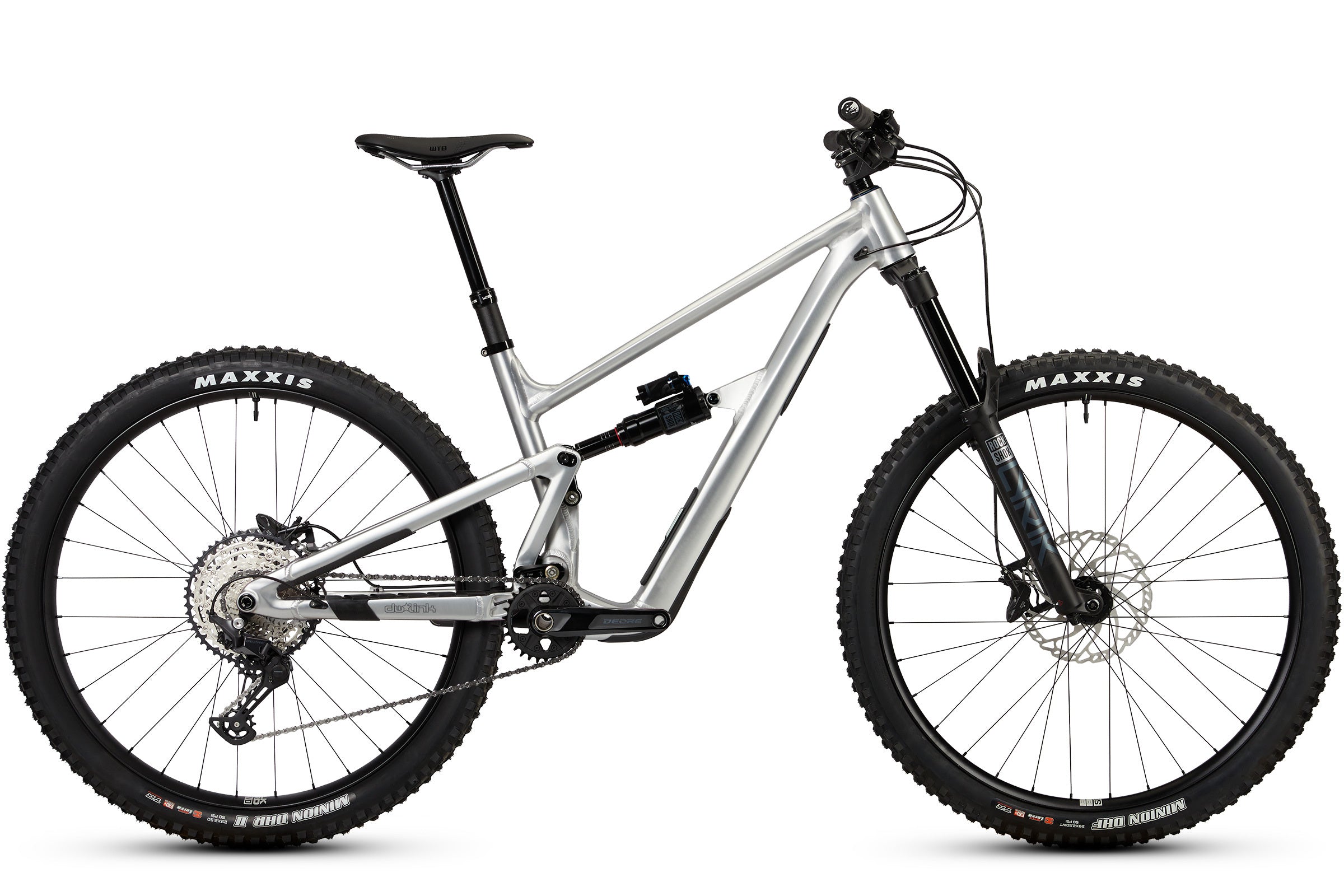

Ripmo AF V2 Complete Deore Bike
It’s Fast. It’s Capable. It’s Metal… AF.
The Ripmo AF legend continues, bringing big-mountain capability to a rugged, aluminum package — blending long-travel confidence with trail-friendly efficiency.
With 160mm front and 150mm rear travel, dw-link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you're racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike; in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.
Size Guide (Rider Height)
- S: 152 - 168cm
- M: 165 - 175cm
- XM: 173 - 183cm
- L: 180 - 191cm
- XL: 188 - 201cm
Components
| Component | Standard Component |
|---|---|
| Fork | RockShox Lyrik, 15QRx110, 160mm |
| Shock | RockShox Super Deluxe Select 230mm x 60mm |
| Wheels | Blackbird Send Alloy (Send I front, Send II rear)
S–M, F: Send I 29" R: Send II 27.5" |
| Front Tire | Maxxis Assegai 29x2.5 EXO+ |
| Rear Tire | Maxxis DHR II, EXO+
S–M: 27.5" x 2.5", XM–XL: 29" x 2.5" |
| Brakes | Shimano Deore, M6120, 4-Piston |
| Rotors (F/R) | Shimano RT-66 6-Bolt 200F/200R |
| Crankset | Shimano Deore M6120 24mm spindle |
| Bottom Bracket | Shimano MT501 |
| Rear Derailleur | Shimano Deore M6100 SGS |
| Shifter | Shimano Deore, M6100 |
| Cassette | Shimano Deore, M6100, 10-51T |
| Chain | KMC X12 |
| Headset | Cane Creek 50: ZS44/ZS56 |
| Grips | Lizard Skin Strata |
| Handlebar | Ibis Aluminum, 780mm |
| Stem | Ibis 31.8mm
S–M: 40mm, L–XL: 50mm |
| Seatpost | KS Vantage Dropper, 34.9mm
S: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm |
| Saddle | WTB Silverado Fusion CrMo 142 |
Specs
| Version | V2 |
| Frame Material | Aluminum |
| Wheel Size | Size XM–XL: 29” wheels Size SM–MD: MX wheels (MX or 29” option in all sizes via flip chip) |
| Front Travel | 160mm |
| Rear Travel | 150mm |
| Shock Specs | 230mm x 60mm (coil shock compatible) |
| Boost Axles | 148mm rear / 110mm front |
| Seatpost Diameter | 34.9mm |
| Rear Brake | 180mm Post mount / 220mm max rotor |
| Chainstay Length | 29": 435–440mm, MX: 432–437mm |
| Bottom Bracket | Threaded (73mm English threaded) |
| Chainline | 55mm chainline |
| Derailleur Hanger | SRAM UDH |
| ISCG 05 Compatible | ISCG 05 Tab Mount available separately |
| Headset | ZS44 upper / ZS56 lower |
| Bottle Mounts | 26oz bottles fit inside the front triangle on all sizes |
| Frame Storage | Large Internal frame storage with easy access door |
| Frame Storage Bag | Ibis Stow bag |
| Colors | Metal AF or Rose Dust |
| Sizes | Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL) |
| Warranty | Lifetime frame warranty |
| Bushings Warranty | Lifetime replacement on bushings |
