Quickdraw Filter System

$74.95

Sizes
SKU: 304164

The QuickDraw Filter System offers both a 1L and 2L variant, each delivering fast, reliable filtration for outdoor adventures. Whether you opt for the compact 1L version or the higher capacity 2L model, you'll enjoy customizable features and durable construction to meet the demands of extended trips.

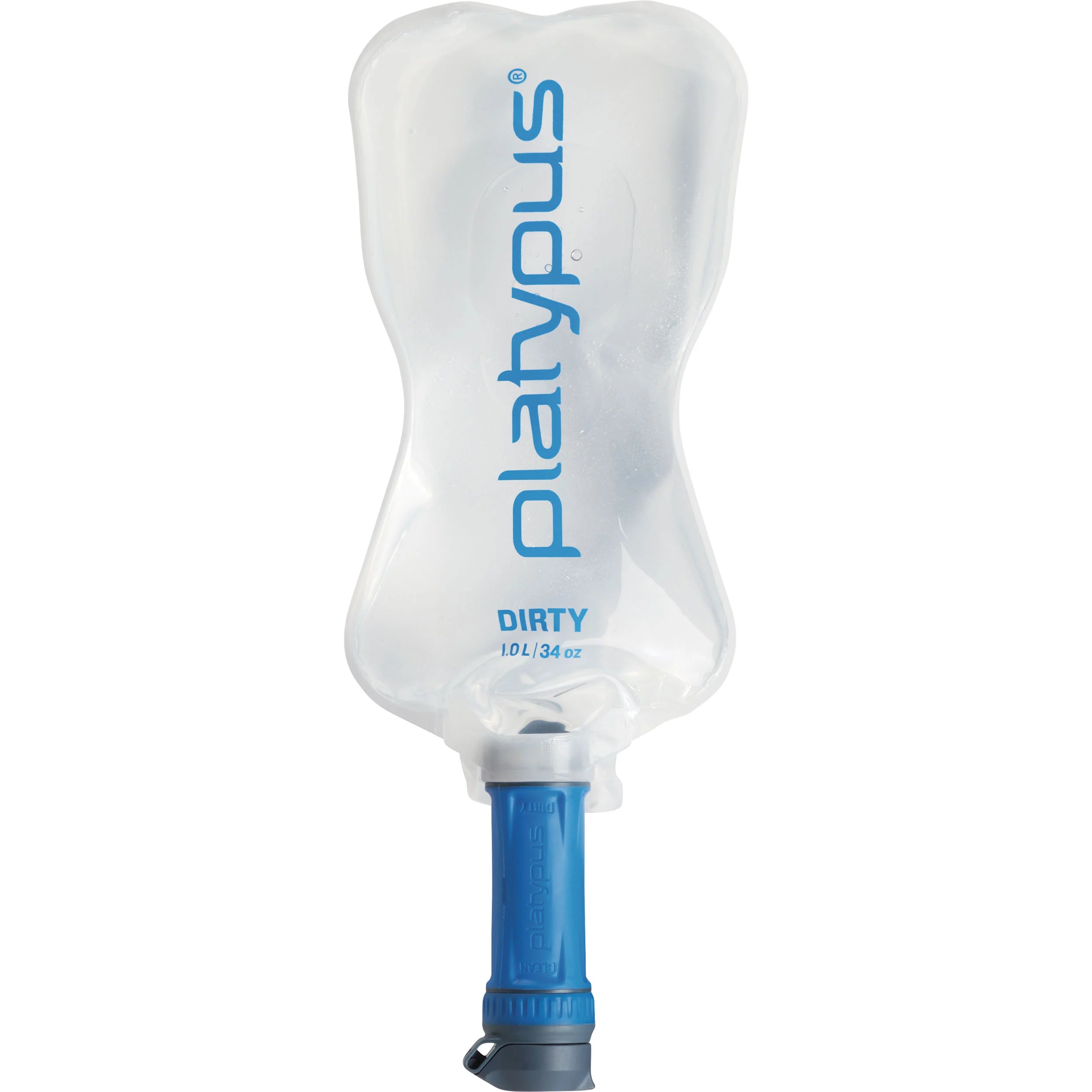

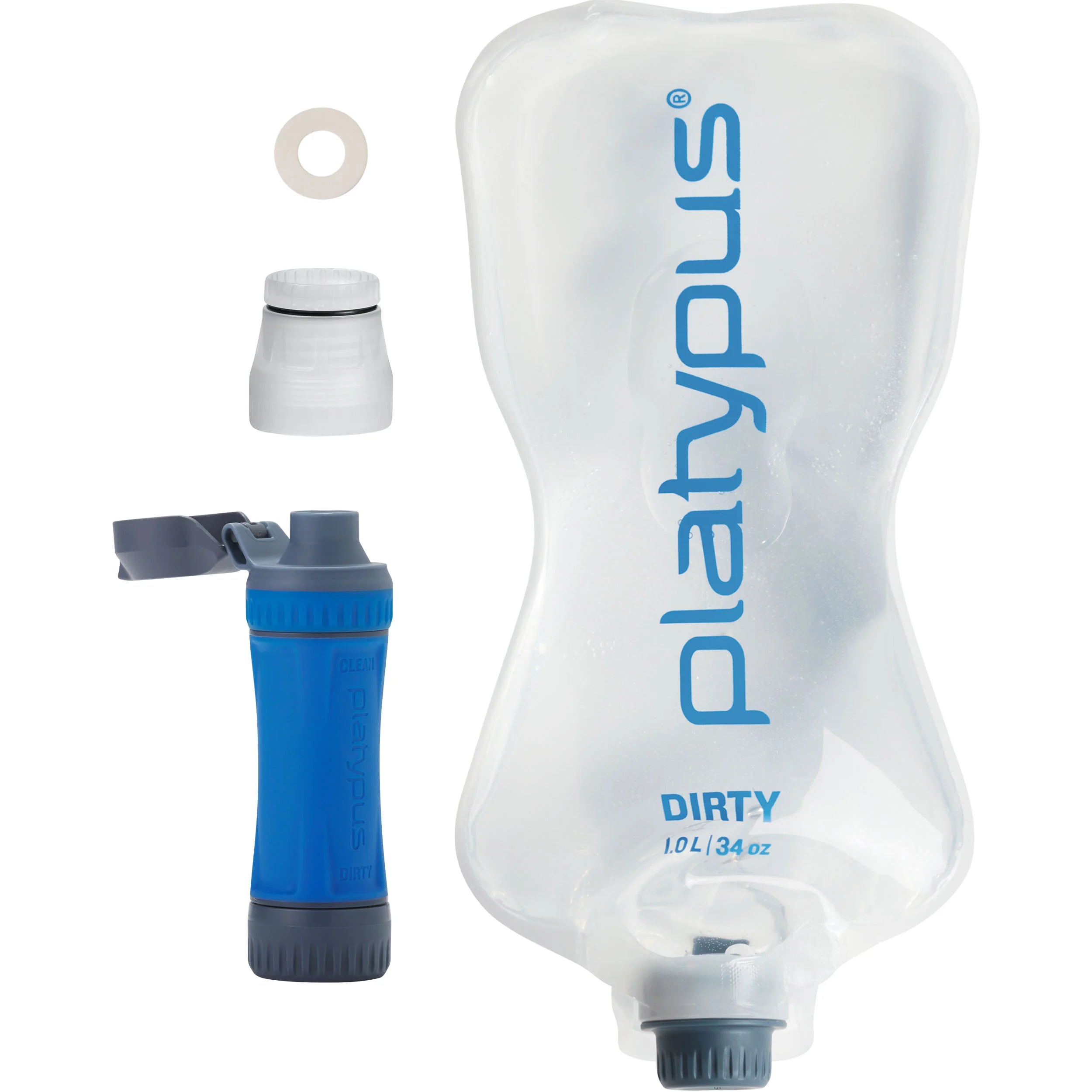

Both versions feature a lightweight and rugged dirty reservoir with a wide-mouth opening and fill handle, ensuring quick and convenient refills while keeping your hands dry. The dirty-side I/O threads allow attachment to the reservoir as well as common narrow-mouth bottles like smartwater® and other Platy bottles. On the clean side, choose between the DrinkCap for drinking and pouring, or the ConnectCap™ for attaching to narrow-mouth bottles.

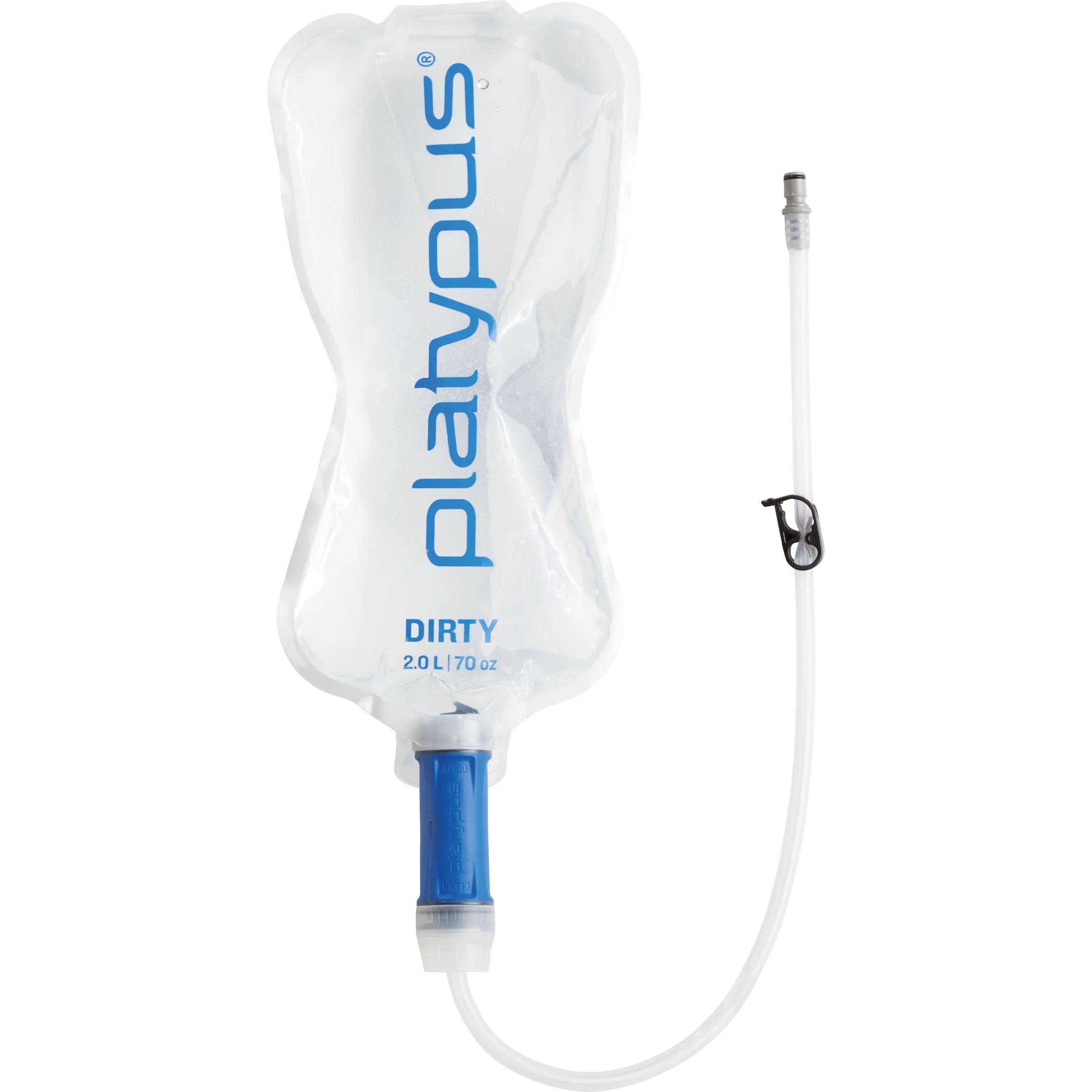

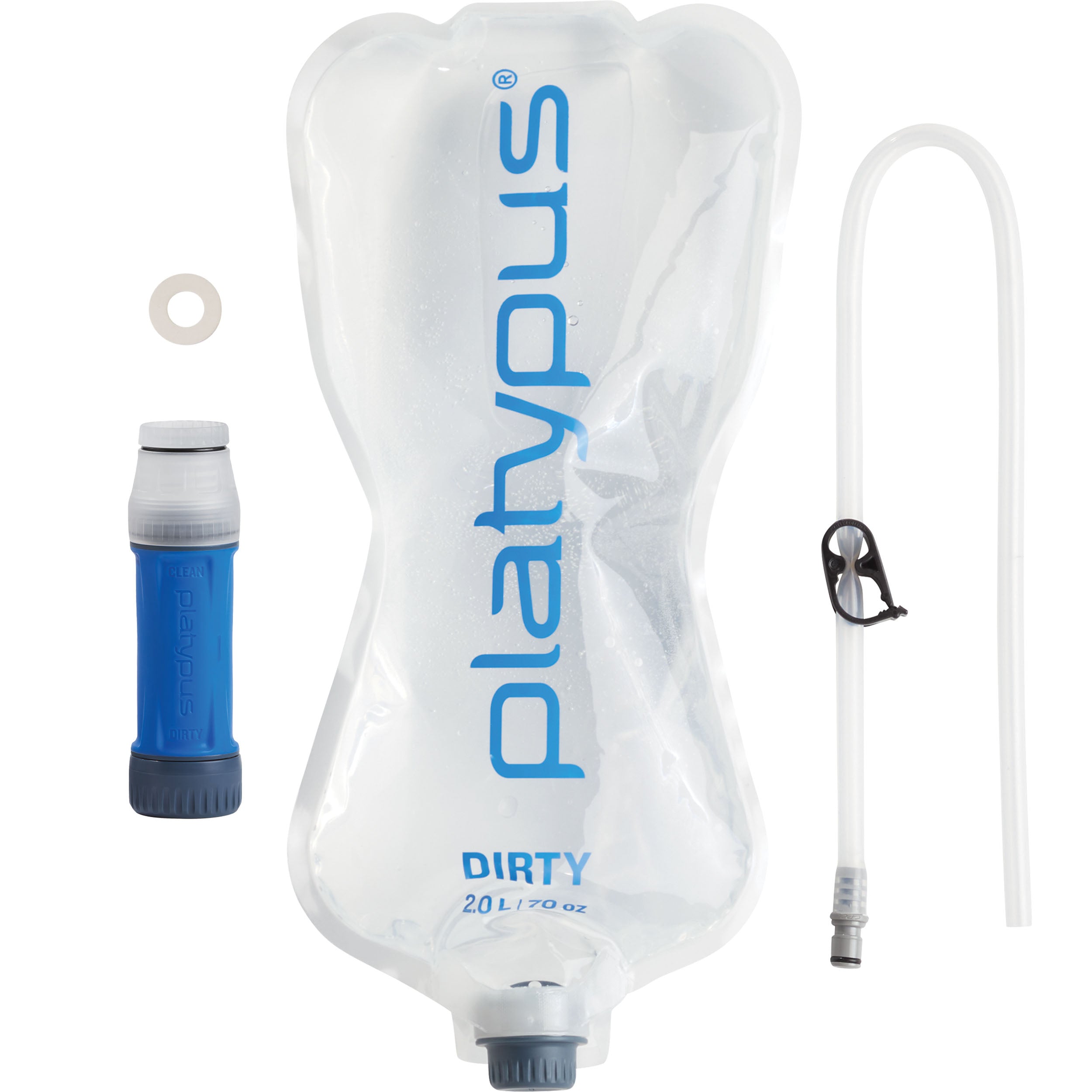

For added convenience, the 2L variant includes a short hose with a quick connector, enabling direct water transfer to hydration reservoirs without removing them from your pack. Both systems offer easy cleaning through shake-to-clean or backflushing methods, maintaining fast-flowing performance throughout your journey.

With rigorous testing ensuring the removal of bacteria and protozoa, along with an integrity check feature for added safety, the QuickDraw Filter System provides peace of mind in the backcountry. Compatible with a range of vessels, including smartwater bottles, Platy bottles, and hydration reservoirs, these systems are designed for versatility and reliability on every adventure.

  • Premium Reservoir: Proprietary tri-layer film dirty reservoir has an easy-fill easy wide mouth opening, a fill handle, and is super durable and packable—plus it’s guaranteed plastic-taste-free.
  • Combine & Customize: I/O dual threads and the ConnectCap let you dial in your custom leak-free system using the clean and dirty vessels you prefer, like smartwater® bottles and Platy bottles.

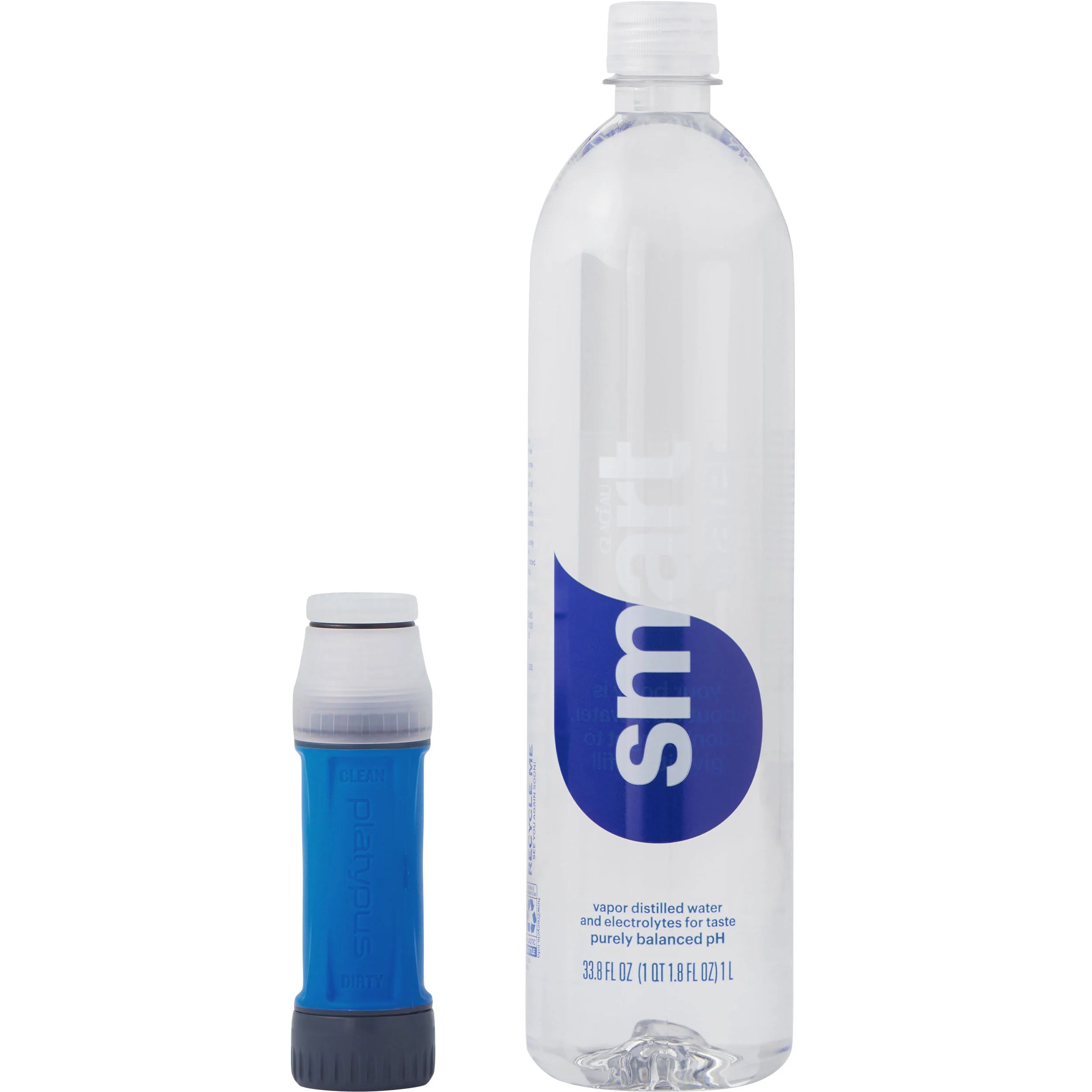

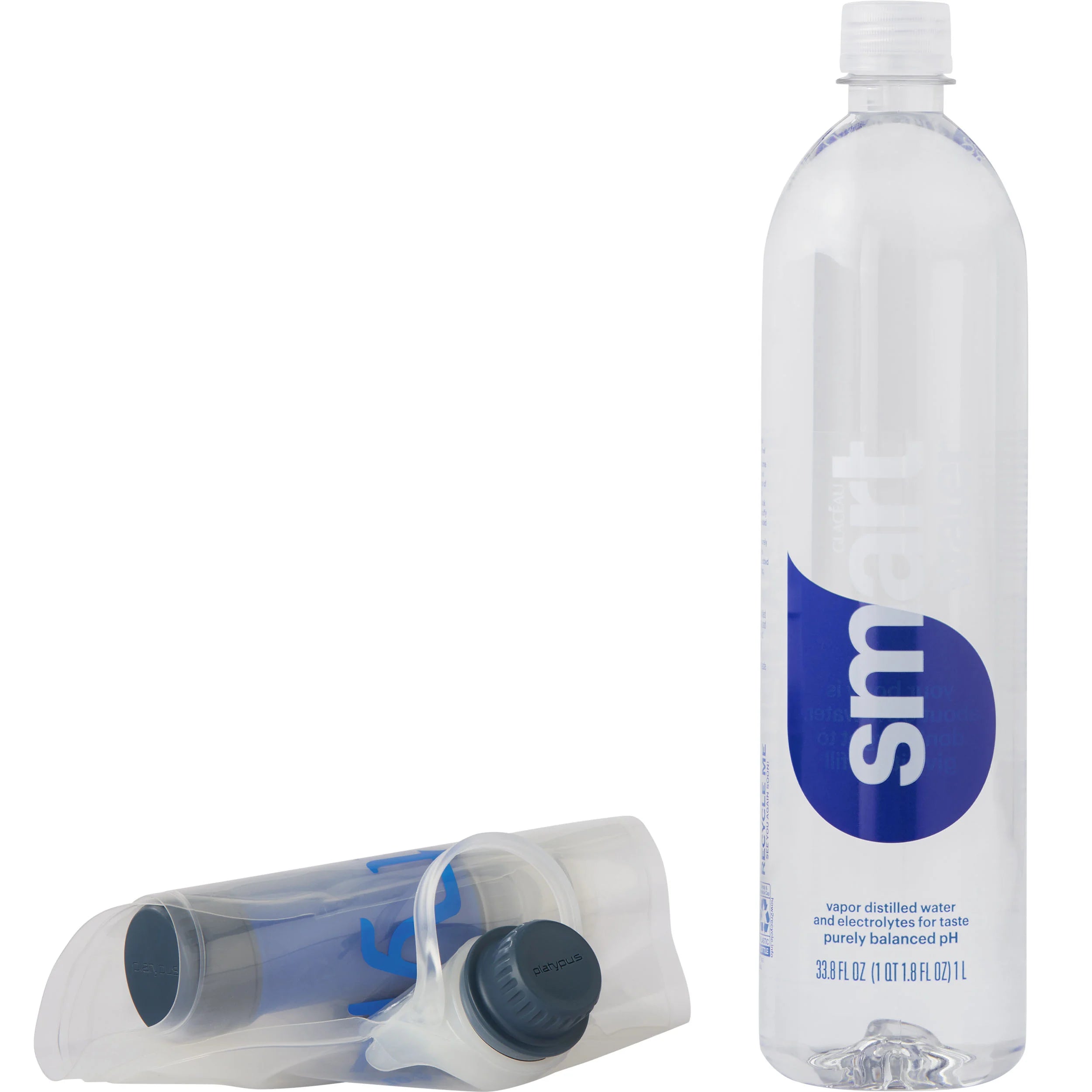

  • Ultralight & Compact: The entire 1L system (filter + reservoir) weighs just 3.3 oz (95 g) and packs smaller than a rolled-up t-shirt. The 2L version weighs in at just 5.7 oz (161 g), it keeps things ultralight with the added versatility of higher water capacity.

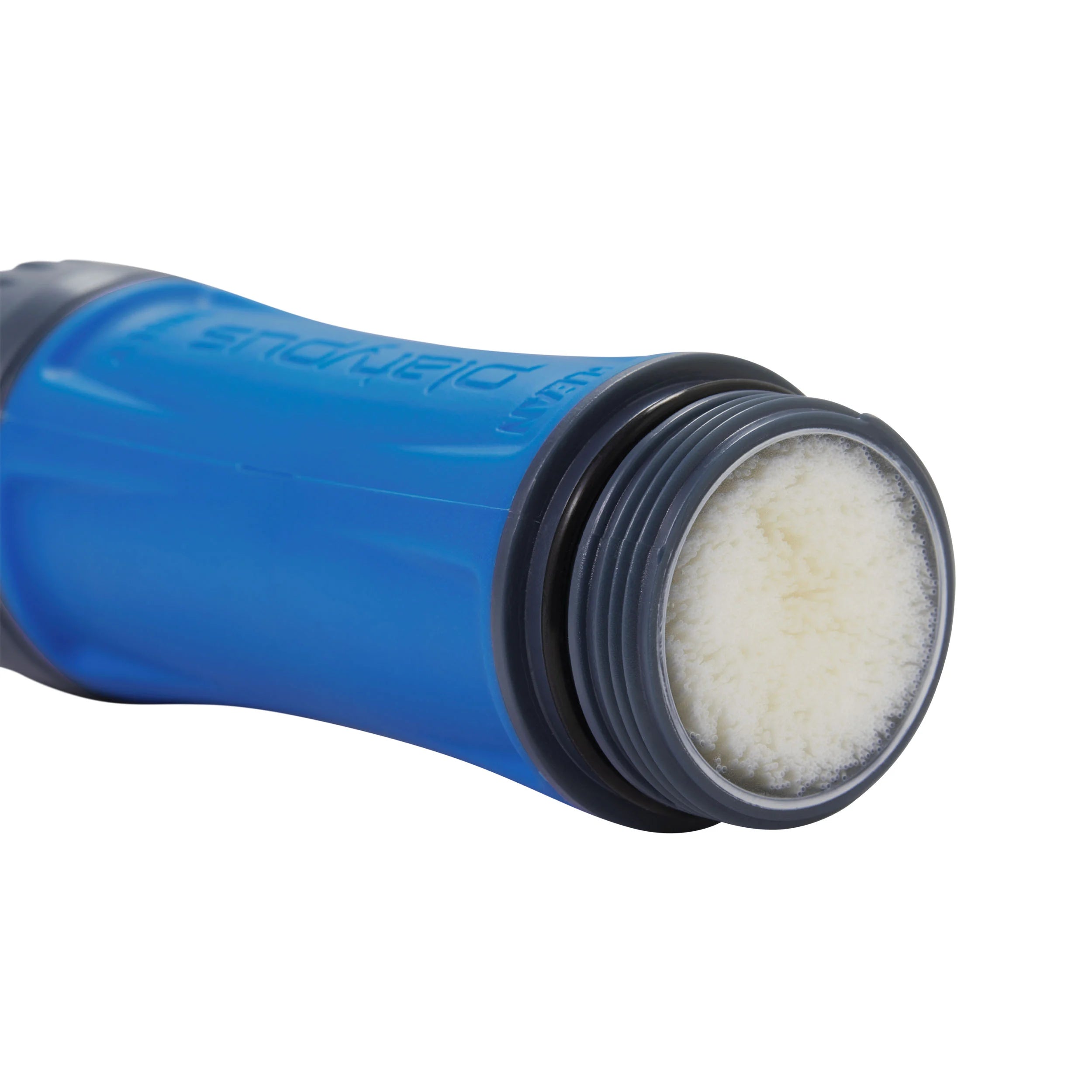

  • Fast Flowing: Hollow fibers filter up to 3 liters per minute with normal squeeze pressure.
  • Easy Cleaning: Easily shake-to-clean the system or backflush it to keep the water flowing fast throughout your trip.
  • Safe & Effective: Each microfilter is individually tested to ensure it meets all EPA & NSF guidelines for the removal of 99.9999% of bacteria and 99.9% of protozoa*.
  • Integrity Test: Unlike other squeeze filters, easily determine if your filter has been compromised and is unsafe to use in the event of a fall or freezing.
  • Compatible Vessels: QuickDraw reservoirs, smartwater bottles and other narrow-mouth 28mm bottles, Platy 2.0L, Platy SoftBottle™, Platy Water Tank, quick disconnect-fitted hydration reservoirs like the Big Zip™ EVO.

*Includes Giardia, Cryptosporidium, E. coli, Salmonella and Cholera.


Tech Specs

SKU 13903 11694
Size 1L 2L
Color Blue Blue
Minimum Weight (Standard) 3.3 oz 4.5 oz
Minimum Weight (Metric) 0.10 kg 0.13 kg
Weight (Standard) 3.3 oz 5.7 oz
Weight (Metric) 0.10 kg 0.16 kg
Width (Standard) 5 in 7.4 in
Width (Metric) 13 cm 18.8 cm
Length (Standard) 3 in 3 in
Length (Metric) 7.6 cm 7.6 cm
Height (Standard) 3 in 2.8 in
Height (Metric) 7.6 cm 7.1 cm
Effective against bacteria Yes Yes
Effective against chemicals/toxins No No
Effective against particulate Yes Yes
Effective against protozoa Yes Yes
Effective against viruses No No
Filter media Hollow Fiber Hollow Fiber
Filter pore size (microns) 0.2 0.2
Flow (L/min) 3 liters per min 3 liters per min
Cartridge life 1000 liters 1000 liters
Field cleanable Yes Yes
Water Bottle Adapter Yes Yes
Material(s) Polyethylene, Polyurethane, Plastic, Hollow Fiber
Country of Origin Made in U.S.A. of U.S. and Imported Materials
Packed dimension (Metric) 8 x 13 in 19 x 8 x 7 cm
Packed dimension (Standard) 3 x 5 in 7.4 x 3 x 2.8 in



1L 13903
2L 11694
