By SKF

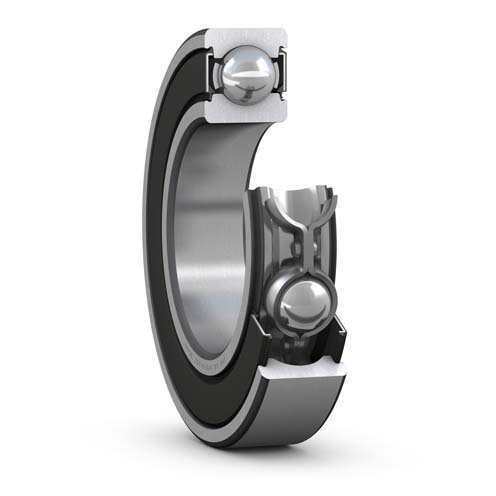

608-2RSH/C3 Radial/Deep Groove Ball Bearing

$10.99

SKU: 294858

Radial/Deep Groove Ball Bearing - Straight Bore, 8 mm ID, 22 mm OD, 7 mm Width, Double Sealed, Without Snap Ring



Specs

Bore Type Straight
Bore Diameter 8 mm
Outside Diameter 22 mm
Overall Width 7 mm
Closure Type Double Sealed
Snap Ring Included Without Snap Ring
Bearing Material Bearing steel
Cage Material Bearing steel
Cage Type Sheet metal
Description 608 2RSH/C3 BRG
Fillet Radius 0.3 mm
Finish Coating Uncoated
Inner Ring Width 7 mm
Internal Clearance C3, C3
Max Rpm 22000 rpm
Operating Temperature Range -40 to +210 °F
Precision Rating ABEC 3
Radial Dynamic Load Capacity 780 lbf
Radial Static Load Capacity 310 lbf
Series 608
Weight 0.03 lbs


SKF Explorer
