Corner Bar Chromoly Handlebar - 25.4mm Clamp, 50cm Width

Used to be if you wanted to throw drop bars on your off-road rig, you had to fork over your allowance for a new drivetrain and brake levers.

We made the Corner Bar so you could conduct all your dirt-drop experiments with your current brake and drivetrain setup. I mean, why spring for the whole buffet when all you want is a salty snack at the bar? Anyway, we made this one out of Chromoly and it comes in three agreeable widths. We’re also including a set of shims. If you don’t need ‘em, stick ‘em in a drawer for later.

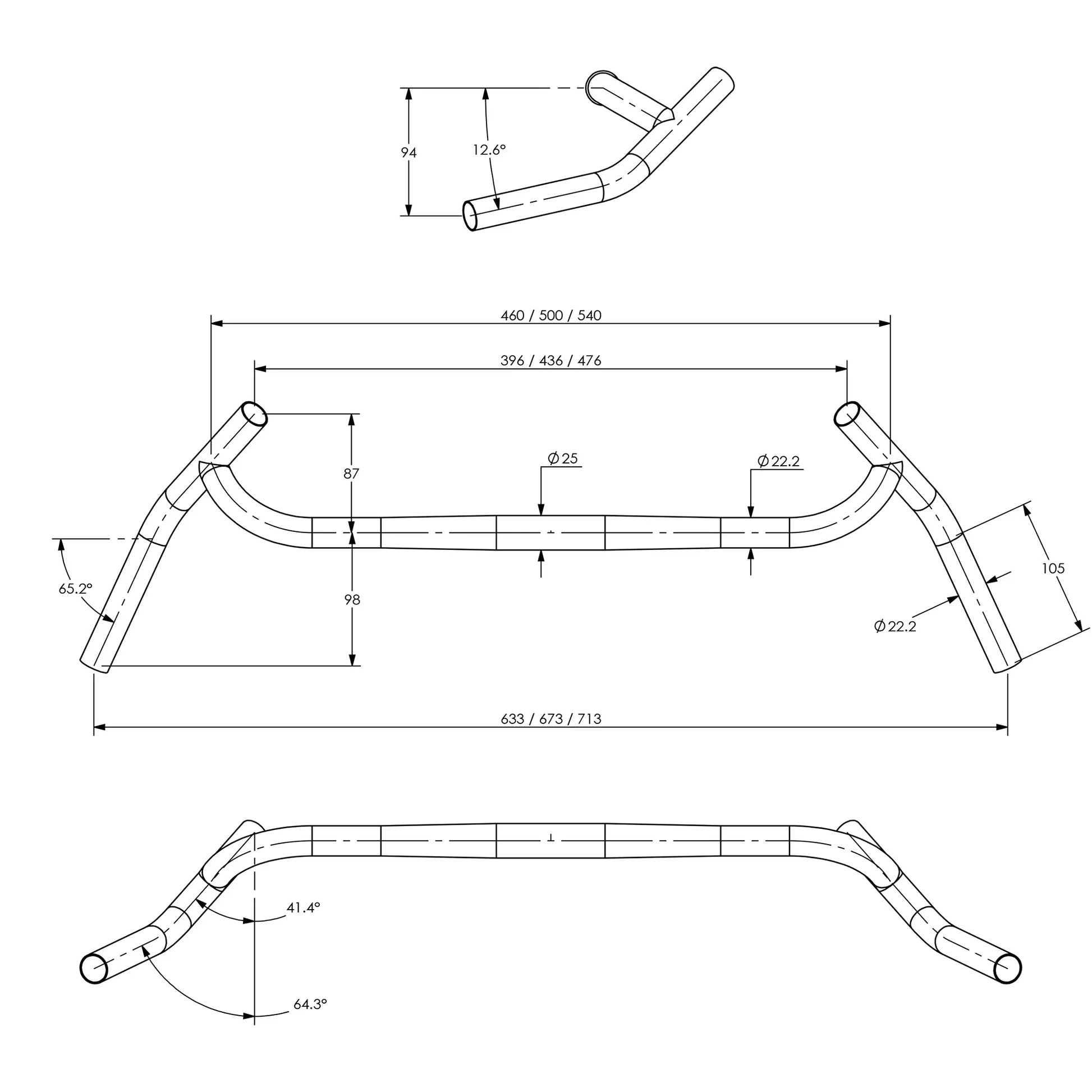

Specifications

• Material: Chromoly
• Clamp Diameter: 25.4mm
• Brake Lever Compatibility: Mountain 22.2mm
• Drop Bar Equivalent Width: 50cm
• Drop Bar Flare: 41.4 degrees
• Bar Drop: 94mm
• Sweep Angle: 65.2 degrees
• Color: E.D. coated black

HB0102
